Description:µPC177, µPC339 comparators are designed for single power supply operation. The features include lowvoltage operation, common-mode input voltage range from V-(GND) level, open-collector output and low current consumption. Furthermore, these products can operate with both power supplies and can be widely used for various voltage comparison application. Depending on the usage and operating ambient temperature range, the μPC177 is design for communication industries and μPC339 is design for general purposes. In
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes thermal design considerations, such as thermal vias, copper pours, and heat sink attachment. It's essential to follow these guidelines to ensure optimal thermal performance and prevent overheating.
The UPC177G2-E1-A has an internal overcurrent protection (OCP) feature, but it's not enabled by default. To implement OCP, you need to set the OCP threshold using the OCP pin and an external resistor. The datasheet provides a calculation formula for the resistor value based on the desired OCP threshold. Additionally, you can use an external OCP circuit or a dedicated OCP IC for more advanced protection.
The UPC177G2-E1-A datasheet specifies a maximum VCC voltage of 6.5V, but it's essential to ensure that the voltage ramp-up and ramp-down rates are within the recommended limits to prevent damage to the device. A slow voltage ramp-up (typically 1-10 ms) and ramp-down (typically 1-10 ms) is recommended to prevent voltage overshoots and undershoots.
To ensure EMC compliance, follow the recommended PCB layout and design guidelines, such as using a solid ground plane, minimizing signal loop areas, and using shielding or filtering components. Additionally, consider using a common-mode choke or a ferrite bead on the power lines to reduce electromagnetic interference (EMI). Renesas also provides EMC-related application notes and guidelines for specific use cases.
The UPC177G2-E1-A datasheet specifies an operating temperature range of -40°C to 125°C, but it's essential to consider the junction temperature (Tj) and the ambient temperature (Ta) when designing the system. The maximum allowed Tj is 150°C, and the device should be derated above 85°C to ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UPC177G2-E1-A Overview

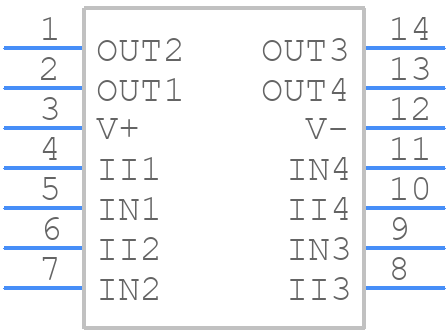

Use the download button to access the UPC177G2-E1-A schematic symbol, PCB footprint, and 3D model.
