UPC29S10GR-A - Renesas Electronics

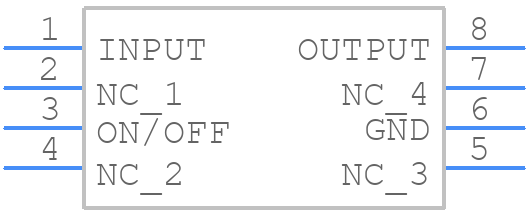

UPC29S10GR-A Details

• Manufacturer Part Number:

  UPC29S10GR-A

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  0.225 INCH, PLASTIC, SOP-8

• Pin Count:

  8

• ECCN Code:

  5A002

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  4 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  1 V

• Dropout Voltage1-Nom:

  0.4 V

• Input Voltage Absolute-Max:

  20 V

• Input Voltage-Max:

  18 V

• Input Voltage-Min:

  11 V

• JESD-30 Code:

  R-PDSO-G8

• JESD-609 Code:

  e6

• Length:

  5.2 mm

• Line Regulation-Max:

  0.1%

• Load Regulation-Max:

  0.1%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  8

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -30 °C

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

• Output Current1-Max:

  0.1 A

• Output Voltage1-Max:

  10.2 V

• Output Voltage1-Min:

  9.7 V

• Output Voltage1-Nom:

  10 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP8,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  1.8 mm

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Terminal Finish:

  TIN BISMUTH

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  10

• Voltage Tolerance-Max:

  3%

• Width:

  4.4 mm
