UPC319G2-E1-A - Renesas Electronics

Description: The µPC319 is a precision High-Speed dual comparator designed to operate over a wide range of supply voltage down to a 5 V logic supply and ground. Further advantage, they have excellent input characteristics and direct drive capability to all the popular logic families.

Download UPC319G2-E1-A Model

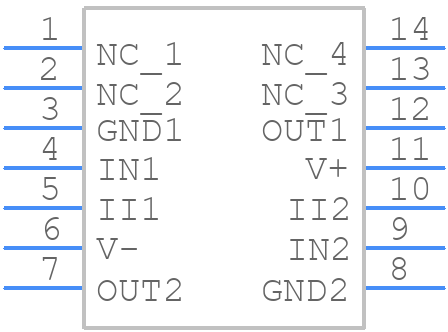

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UPC319G2-E1-A - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 14-PIN PLASTIC SOP---
click to zoom
3D Models
UPC319G2-E1-A - Renesas Electronics  - 3D model - Small Outline Packages - 14-PIN PLASTIC SOP---
click to zoom

UPC319G2-E1-A Details

  • Manufacturer Part Number:

    UPC319G2-E1-A

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOP

  • Pin Count:

    14

  • Manufacturer Package Code:

    PRSP0014DI-A14

  • Country Of Origin:

    Japan, Malaysia

  • ECCN Code:

    5A002

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Amplifier Type:

    COMPARATOR

  • Bias Current-Max (IIB) @25C:

    1 µA

  • Input Offset Voltage-Max:

    8000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e6

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, EMBOSSED

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    80 ns

  • Supply Current-Max:

    12.5 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

UPC319G2-E1-A Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the UPC319G2-E1-A is -40°C to 85°C.
  • The POR circuitry in the UPC319G2-E1-A is designed to reset the device during power-up. To handle it, ensure that the power supply voltage rises slowly and monotonically to avoid false resets. A minimum rise time of 1 ms is recommended.
  • The internal voltage regulator in the UPC319G2-E1-A generates a stable internal voltage (VINT) from the external power supply voltage (VCC). This allows the device to operate with a single external power supply voltage.
  • The UPC319G2-E1-A can use an external clock source or an internal clock source. To configure the clock source, use the Clock Control Register (CKCR) to select the clock source and set the clock frequency.
  • The WDT in the UPC319G2-E1-A is a safety feature that resets the device if it fails to respond within a predetermined time period. This helps prevent the device from entering an infinite loop or hanging due to software errors.
