UPC4062G2-E1-A - Renesas Electronics

Description: The µPC4062 is a J-FET input low-power operational amplifier featuring low supply voltage operation from ±2 V. Supply current is ten times smaller than that of µPC4082 type op-amp. With very low input bias current characteristics, the µPC4062 is an excellent choice for hand-held measurement equipment and other low-power application circuits.

Download UPC4062G2-E1-A Model

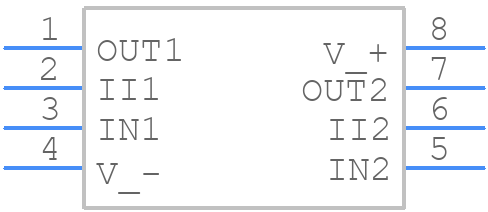

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

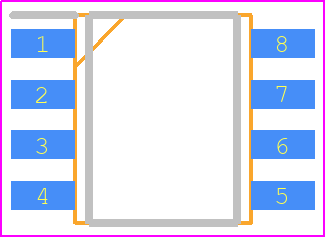

UPC4062G2-E1-A - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 8-PIN PLASTIC SOP (5.72 mm (225))-------
click to zoom
3D Models
UPC4062G2-E1-A - Renesas Electronics  - 3D model - Small Outline Packages - 8-PIN PLASTIC SOP (5.72 mm (225))-------
click to zoom

UPC4062G2-E1-A Details

  • Manufacturer Part Number:

    UPC4062G2-E1-A

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOP

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    PRSP0008DL-A8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    5A002

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0001 µA

  • Bias Current-Max (IIB) @25C:

    0.0001 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    10000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e6

  • Length:

    5.2 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, EMBOSSED

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.8 mm

  • Slew Rate-Nom:

    3 V/us

  • Supply Current-Max:

    0.5 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    1000

  • Voltage Gain-Min:

    3000

  • Wideband:

    NO

  • Width:

    4.4 mm

UPC4062G2-E1-A Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the UPC4062G2-E1-A is -40°C to +85°C.
  • To ensure the stability of the output voltage, it is recommended to use a capacitor with a value of 10uF or more between the VOUT pin and the GND pin, and to keep the output voltage within the specified range.
  • The maximum input voltage that the UPC4062G2-E1-A can handle is 18V. Exceeding this voltage may cause damage to the device.
  • The output voltage of the UPC4062G2-E1-A can be calculated using the formula: VOUT = (1 + R1/R2) x VREF, where R1 and R2 are the resistors connected to the FB pin, and VREF is the internal reference voltage (typically 2.5V).
  • The quiescent current of the UPC4062G2-E1-A is typically around 5mA, but this can vary depending on the input voltage and output load.
