UPC4741C-A - Renesas Electronics

UPC4741C-A Details

• Manufacturer Part Number:

  UPC4741C-A

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

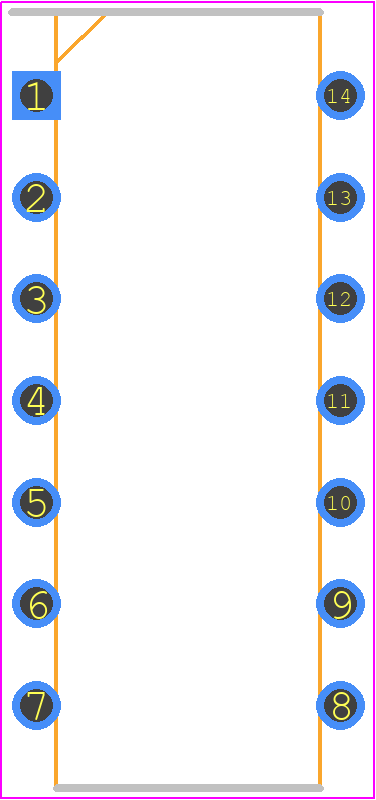

• Part Package Code:

  DIP

• Package Description:

  DIP-14

• Pin Count:

  14

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Average Bias Current-Max (IIB):

  0.3 µA

• Common-mode Reject Ratio-Min:

  80 dB

• Common-mode Reject Ratio-Nom:

  100 dB

• Input Offset Voltage-Max:

  5000 µV

• JESD-30 Code:

  R-PDIP-T14

• JESD-609 Code:

  e6/e4

• Length:

  19.22 mm

• Neg Supply Voltage Limit-Max:

  -20 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Number of Functions:

  4

• Number of Terminals:

  14

• Operating Temperature-Max:

  80 °C

• Operating Temperature-Min:

  -20 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.08 mm

• Slew Rate-Nom:

  1.6 V/us

• Supply Voltage Limit-Max:

  20 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Finish:

  TIN BISMUTH/NICKEL PALLADIUM GOLD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Unity Gain BW-Nom:

  3000

• Voltage Gain-Min:

  25000

• Width:

  7.62 mm
