UPC802G2-E1-AP - Renesas Electronics

Description: The UPC802 and 4250 are operational amplifier circuits with an extremely low power consumption of 14UW. These operation amplifiers have a wide power supply voltage range (± 1V to ± 16V), and various electrical characteristics such as input bias current that can be programmed using the set current value. These devices are ideal for high-precision analog circuits in battery-operated portable electronic devices.

Download UPC802G2-E1-AP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

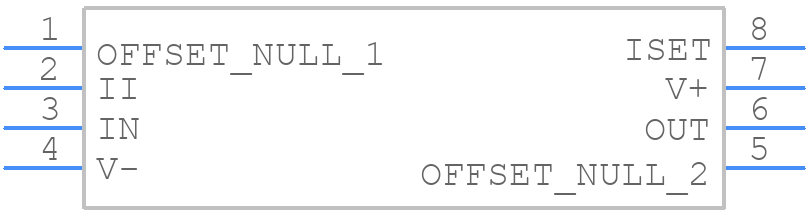

UPC802G2-E1-AP - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
UPC802G2-E1-AP - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PLSP0008DE-A
click to zoom
3D Models
UPC802G2-E1-AP - Renesas Electronics - 3D model - Small Outline Packages - PLSP0008DE-A
click to zoom

UPC802G2-E1-AP Details

  • Manufacturer Part Number:

    UPC802G2-E1-AP

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UPC802G2-E1-AP Overview

Use the download button to access the UPC802G2-E1-AP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UPC80, or try a keyword search, such as Operational Amplifiers
