UPC813G2-AP - Renesas Electronics

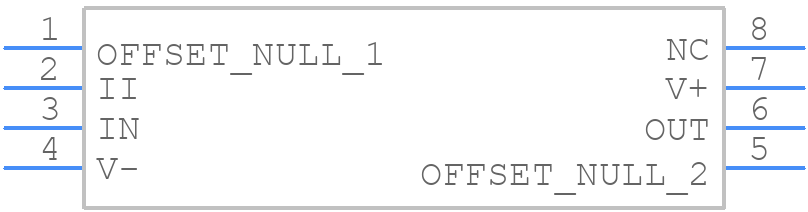

UPC813G2-AP Details

• Manufacturer Part Number:

  UPC813G2-AP

• Part Life Cycle Code:

  Active

• Package Description:

  SOP-8

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  4

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  0.0002 µA

• Bias Current-Max (IIB) @25C:

  0.0002 µA

• Common-mode Reject Ratio-Min:

  70 dB

• Common-mode Reject Ratio-Nom:

  100 dB

• Frequency Compensation:

  YES

• Input Offset Voltage-Max:

  2500 µV

• JESD-30 Code:

  R-PDSO-G8

• Length:

  5.2 mm

• Low-Bias:

  YES

• Low-Offset:

  NO

• Micropower:

  NO

• Neg Supply Voltage Limit-Max:

  -18 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP8,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUT LINE

• Power:

  NO

• Programmable Power:

  NO

• Seated Height-Max:

  1.8 mm

• Slew Rate-Nom:

  25 V/us

• Supply Current-Max:

  3.4 mA

• Supply Voltage Limit-Max:

  18 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Unity Gain BW-Nom:

  6000

• Voltage Gain-Min:

  25000

• Wideband:

  NO

• Width:

  4.4 mm
