UPC824G2-E1-A - Renesas Electronics

Description: The μPC824 and 4074 are low noise versions operational amplifier of μPC804 and 4084 series with the general-purpose J-FET input. Compared with the μPC804 and 4084 series, various characteristics such as input referred noise, input offset voltage and input bias current have been improved. It is therefore ideal for application circuits such as preamplifiers and active filters for measurement, audio and measurement where low noise, high input impedance and high-speed characteristics are important. Depending on

Download UPC824G2-E1-A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

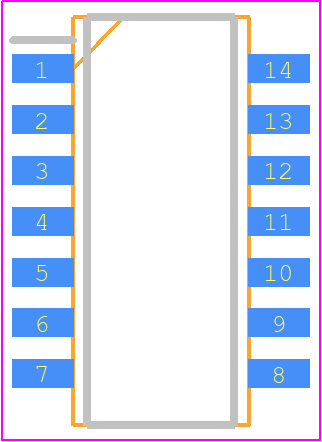

UPC824G2-E1-A - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PRSP0014DI-A_2023
click to zoom
3D Models
UPC824G2-E1-A - Renesas Electronics  - 3D model - Small Outline Packages - PRSP0014DI-A_2023
click to zoom

UPC824G2-E1-A Details

  • Manufacturer Part Number:

    UPC824G2-E1-A

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOP

  • Package Description:

    SOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    PRSP0014DI-A14

  • Country Of Origin:

    Thailand

  • ECCN Code:

    5A002

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.007 µA

  • Bias Current-Max (IIB) @25C:

    0.0002 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    10000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    10.2 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUT LINE

  • Packing Method:

    TR, EMBOSSED

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.8 mm

  • Slew Rate-Nom:

    13 V/us

  • Supply Current-Max:

    10 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    3000

  • Voltage Gain-Min:

    25000

  • Wideband:

    NO

  • Width:

    4.4 mm

UPC824G2-E1-A Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the UPC824G2-E1-A is -40°C to 85°C, as specified in the datasheet. However, it's essential to note that the device can operate at a wider temperature range, but with reduced performance and reliability.
  • To ensure reliability in high-temperature applications, it's crucial to follow proper thermal design and management practices, such as providing adequate heat sinking, using thermal interface materials, and minimizing power consumption. Additionally, consider using a thermal monitoring and shutdown mechanism to prevent overheating.
  • The maximum allowed voltage on the input pins of the UPC824G2-E1-A is 5.5V, as specified in the datasheet. Exceeding this voltage can cause permanent damage to the device. It's essential to ensure that the input voltage is within the recommended range to prevent damage and ensure reliable operation.
  • To handle ESD protection for the UPC824G2-E1-A, it's recommended to follow proper ESD handling procedures, such as using an ESD wrist strap, ESD mat, or ESD bag. Additionally, consider adding ESD protection devices, such as TVS diodes or ESD protection arrays, to the circuit design to prevent damage from electrostatic discharge.
  • The recommended power-up sequence for the UPC824G2-E1-A is to apply the power supply voltage (VCC) before applying the clock signal (CLK). This ensures that the device is properly initialized and configured before starting operation.
