UPD2425 - CRYDOM

Description: Solid State Relays - PCB Mount UPD Single-Phase 240V / 25A ZC PCB

Download UPD2425 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

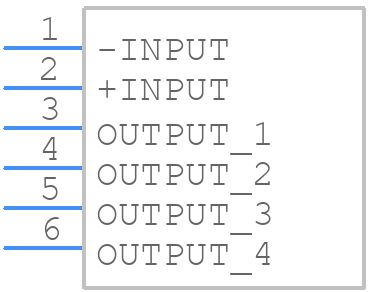

UPD2425 - CRYDOM - PCB symbol
click to zoom
PCB Footprints

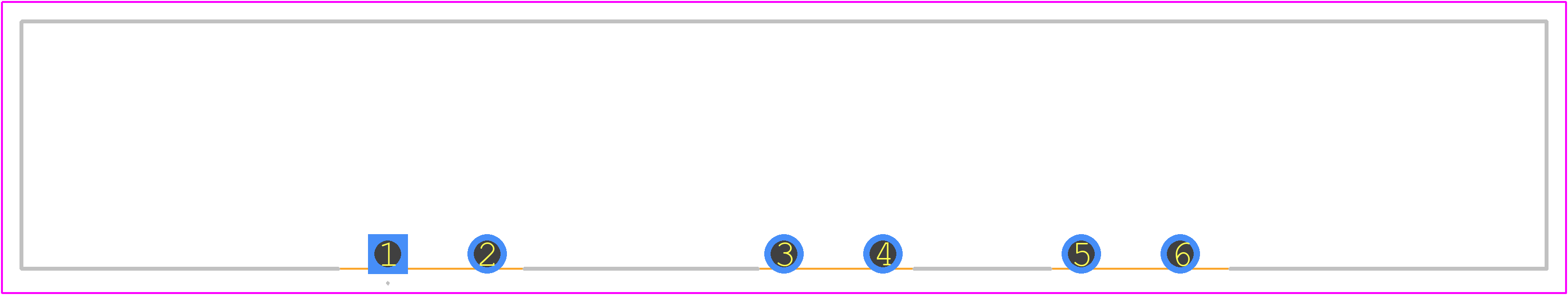

UPD2425 - CRYDOM PCB footprint - Other - Other - UPD2425-3
click to zoom
3D Models
UPD2425 - CRYDOM - 3D model - Other - UPD2425-3
click to zoom

UPD2425 Details

  • Manufacturer Part Number:

    UPD2425

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    SIP-6

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Crydom Inc

  • Additional Feature:

    UL RECOGNIZED, ZERO VOLTAGE CROSSING

  • Isolation Voltage-Max:

    2500 V

  • Number of Elements:

    1

  • On-State Current-Max:

    25 A

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRIGGER OUTPUT SSR

UPD2425 Frequently Asked Questions (FAQs)

  • The UPD2425 can operate in a temperature range of -40°C to 85°C.
  • To ensure reliability in high-vibration environments, it is recommended to use a secure mounting method, such as screwing or clipping the device to a PCB or chassis, and to follow proper soldering and assembly techniques.
  • Yes, the UPD2425 is designed to handle high surge currents, making it suitable for applications such as motor control, lighting, and power supplies.
  • To protect the UPD2425 from EOS, it is recommended to use a transient voltage suppressor (TVS) or a metal oxide varistor (MOV) in parallel with the device, and to follow proper PCB layout and design guidelines.
  • Yes, the UPD2425 is compatible with lead-free soldering processes, making it suitable for use in RoHS-compliant applications.
