Description:USB Interface IC Highly Integrated Small Form Factor USB Type-C Power Delivery 3.0 Port Controller with I2C Interface, Standalone UFP Mode, Dead Battery Support at +1.8V-3.3V
The recommended operating temperature range for the UPD350A/Q8X is -40°C to +85°C, as specified in the datasheet. However, it's essential to note that the device can operate at temperatures beyond this range, but with reduced performance and reliability.
To ensure reliable communication, it's crucial to follow the recommended interface timing and signal integrity guidelines provided in the datasheet. Additionally, implementing error detection and correction mechanisms, such as CRC and retries, can help improve communication reliability.
The UPD350A/Q8X supports data transfer rates up to 100 Mbps, depending on the interface configuration and the specific application requirements. However, the actual data transfer rate may be limited by the host processor, interface, and system design.
To configure the UPD350A/Q8X for low-power operation, refer to the power management section in the datasheet. This typically involves setting the device to a low-power mode, reducing the clock frequency, and minimizing the number of active interfaces. Additionally, implementing power-saving techniques, such as dynamic voltage and frequency scaling, can help reduce power consumption.
When designing a PCB layout for the UPD350A/Q8X, it's essential to follow the recommended layout guidelines provided in the datasheet. Key considerations include minimizing signal trace lengths, using impedance-controlled traces, and providing adequate power and ground connections. Additionally, ensuring proper thermal management and electromagnetic interference (EMI) mitigation is crucial for reliable operation.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
UPD350A/Q8X Overview

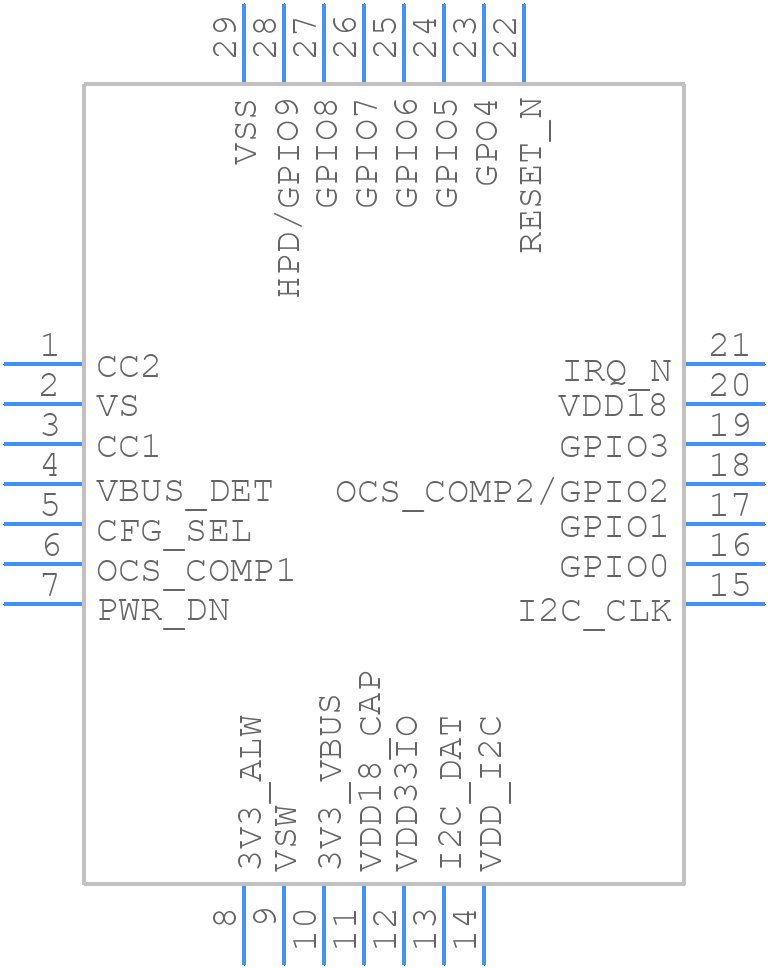

Use the download button to access the UPD350A/Q8X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UPD35,
or try a keyword search, such as Bus Controllers
