UPD350DT/Q8X - Microchip

Description: USB Interface IC Highly Integrated Small Form Factor USB Type-C Power Delivery 3.0 Port Controller with SPI Interface

Download UPD350DT/Q8X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

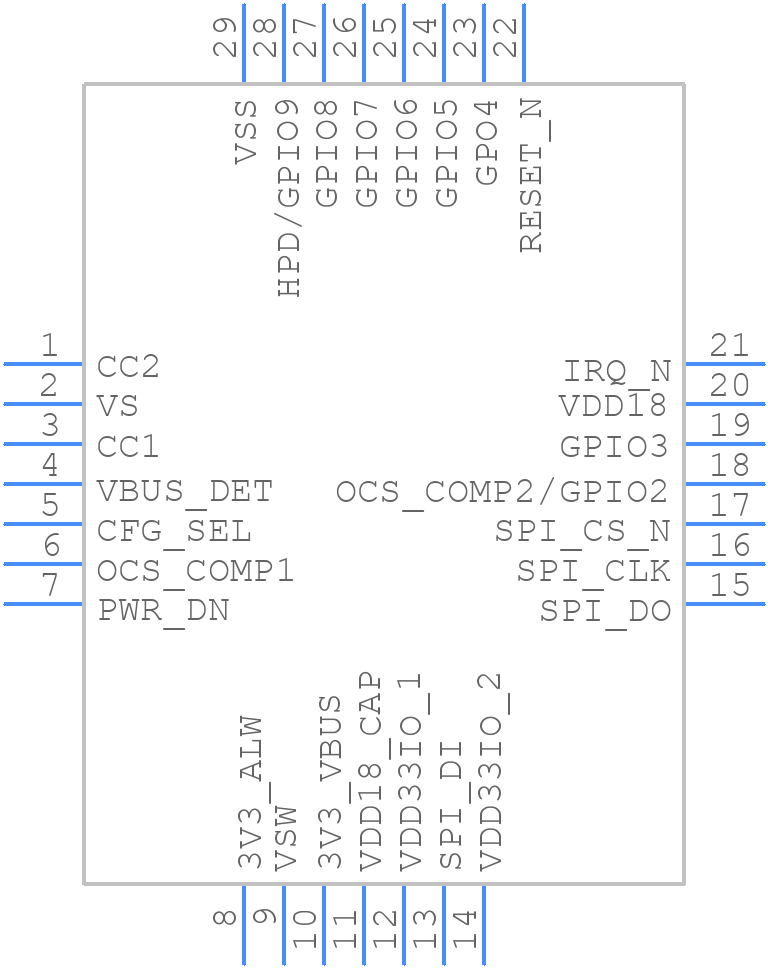

UPD350DT/Q8X - Microchip - PCB symbol
click to zoom
PCB Footprints
UPD350DT/Q8X - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 28-QFN PACKAGE
click to zoom
3D Models
UPD350DT/Q8X - Microchip - 3D model - Quad Flat No-Lead - 28-QFN PACKAGE
click to zoom

UPD350DT/Q8X Details

  • Manufacturer Part Number:

    UPD350DT/Q8X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-28

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Bus Compatibility:

    I2C; SPI; USB

  • Clock Frequency-Max:

    48 MHz

  • JESD-30 Code:

    S-PQCC-N28

  • Length:

    4 mm

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC28,.16SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    1.98 V

  • Supply Voltage-Min:

    1.62 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

UPD350DT/Q8X Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the UPD350DT/Q8X is -40°C to +85°C, as specified in the datasheet. However, it's essential to note that the device can operate at a wider temperature range, but with reduced performance and reliability.
  • To configure the UPD350DT/Q8X for optimal power consumption, you can use the Power Management (PM) registers to control the clock frequency, voltage regulator, and power modes. Additionally, you can use the Dynamic Voltage and Frequency Scaling (DVFS) feature to adjust the voltage and frequency based on the system's workload.
  • The maximum clock frequency supported by the UPD350DT/Q8X is 480 MHz, as specified in the datasheet. However, the actual clock frequency may vary depending on the system's configuration, voltage, and temperature.
  • To implement secure boot on the UPD350DT/Q8X, you can use the Secure Boot (SB) feature, which provides a secure way to boot the device. This involves generating a secure boot key, storing it in the One-Time Programmable (OTP) memory, and configuring the boot process to use the secure boot key.
  • The UPD350DT/Q8X supports up to 8 MB of flash memory and 1 MB of RAM. However, the actual memory size may vary depending on the specific device configuration and package.
