UPD43256BCZ-85L - NEC

Description: Static RAM, 32Kx8, 28 Pin, Plastic, DIP

Download UPD43256BCZ-85L Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this UPD43256BCZ-85L model

Email notifications will be applied after download.

Send part feedback

Symbol

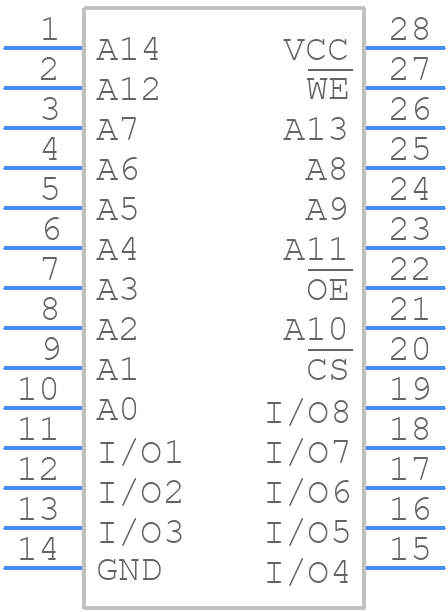

UPD43256BCZ-85L - NEC - PCB symbol

PCB Footprints

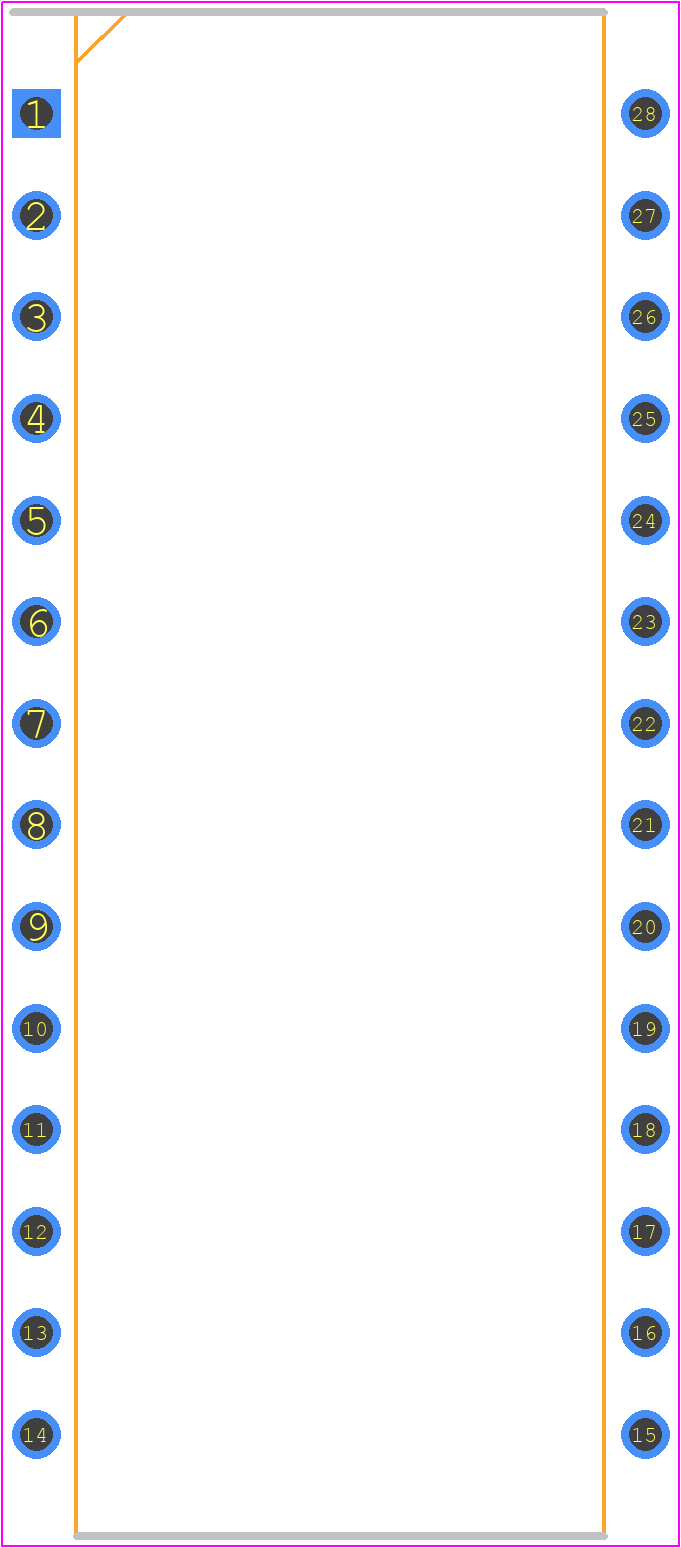

UPD43256BCZ-85L - NEC PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 28 PIN PLASTIC DIP

3D Models

UPD43256BCZ-85L - NEC - 3D model - Dual-In-Line Packages - 28 PIN PLASTIC DIP

Datasheet Download Datasheet
Stock & Prices Price & Stock for UPD43256BCZ-85L
Part Number UPD43256BCZ-85L
Manufacturer NEC
Pin Count 28
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - 28 PIN PLASTIC DIP
Released Date Dec 28, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

UPD43256BCZ-85L Details

Manufacturer Part Number:
UPD43256BCZ-85L
Manufacturer:
NEC Electronics America Inc

Trust Checks

Community Provided

System Verified

Community Approved

UPD43256BCZ-85L Overview

Use the download button to access the UPD43256BCZ-85L schematic symbol, PCB footprint, and 3D model.
