UPD43257BCZ-70LL - NEC

Description: 256K-BIT CMOS STATIC RAM 32K-WORD BY 8-BIT

Download UPD43257BCZ-70LL Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this UPD43257BCZ-70LL model

Email notifications will be applied after download.

Send part feedback

Symbol

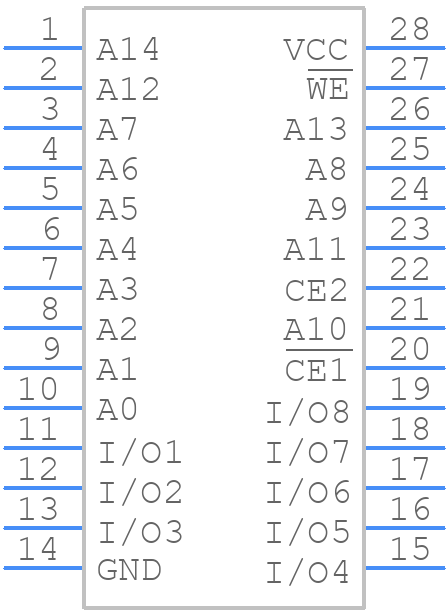

UPD43257BCZ-70LL - NEC - PCB symbol

PCB Footprints

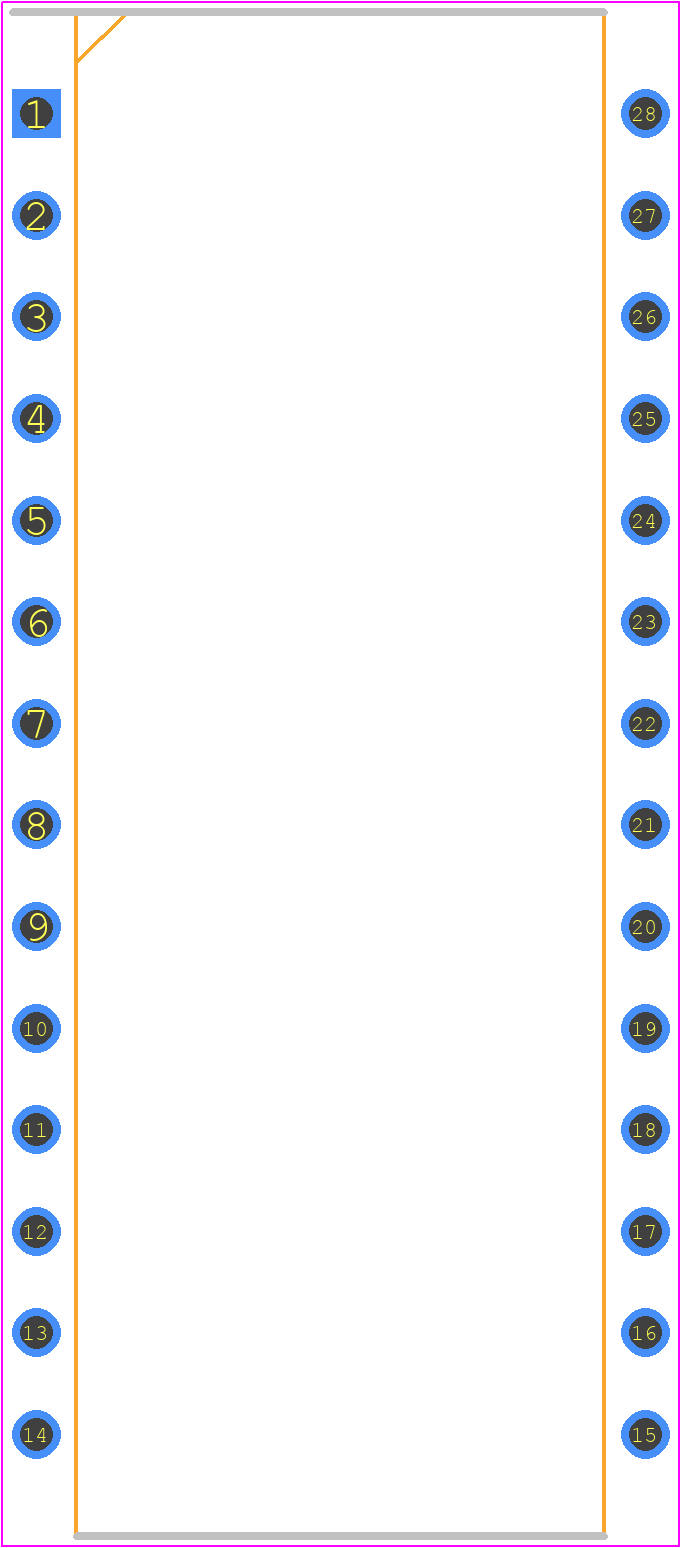

UPD43257BCZ-70LL - NEC PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP (15.24 mm (600))

3D Models

UPD43257BCZ-70LL - NEC - 3D model - Dual-In-Line Packages - DIP (15.24 mm (600))

Datasheet Download Datasheet
Stock & Prices Price & Stock for UPD43257BCZ-70LL
Part Number UPD43257BCZ-70LL
Manufacturer NEC
Pin Count 28
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - DIP (15.24 mm (600))
Released Date Apr 24, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

UPD43257BCZ-70LL Details

Manufacturer Part Number:
UPD43257BCZ-70LL
Manufacturer:
NEC Electronics America Inc

Trust Checks

Community Provided

System Verified

Community Approved

UPD43257BCZ-70LL Overview

Use the download button to access the UPD43257BCZ-70LL schematic symbol, PCB footprint, and 3D model.
