UPD70F3736GC-GAD-AX - Renesas Electronics

UPD70F3736GC-GAD-AX Details

• Manufacturer Part Number:

  UPD70F3736GC-GAD-AX

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  LQFP

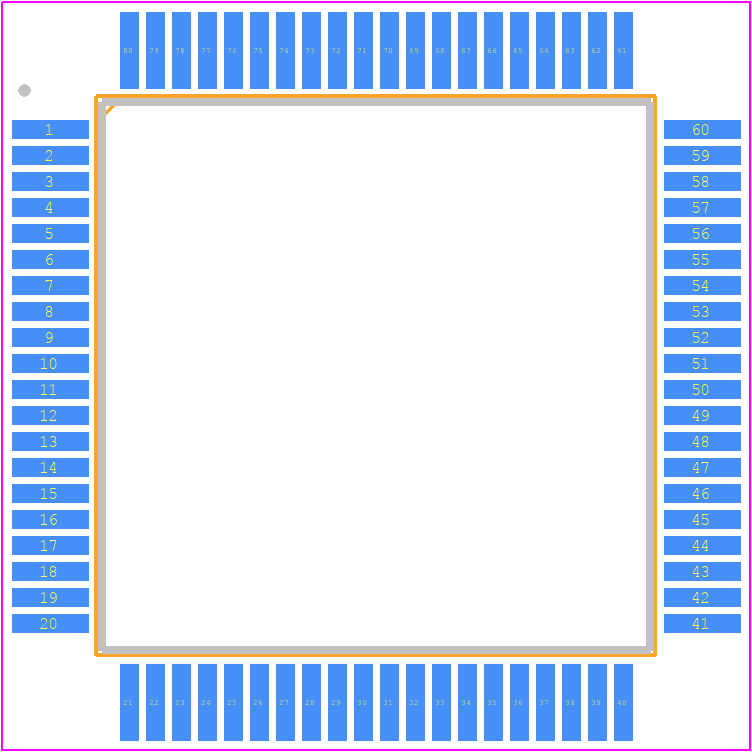

• Package Description:

  14 X 14 MM, LEAD FREE, PLASTIC, LQFP-80

• Pin Count:

  80

• Manufacturer Package Code:

  PLQP0080JB

• HTS Code:

  8542.31.00.25

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Has ADC:

  YES

• Additional Feature:

  ALSO OPERATES AT 2.2V SUPPLY AT 5 MHZ

• Address Bus Width:

  18

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  V850

• Clock Frequency-Max:

  10 MHz

• DAC Channels:

  YES

• DMA Channels:

  YES

• External Data Bus Width:

  16

• JESD-30 Code:

  S-PQFP-G80

• JESD-609 Code:

  e4

• Length:

  14 mm

• Number of I/O Lines:

  66

• Number of Terminals:

  80

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LQFP

• Package Equivalence Code:

  QFP80,.68SQ

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, LOW PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• RAM (bytes):

  16384

• ROM (words):

  262144

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.7 mm

• Speed:

  20 MHz

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  10

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
