UPD70F3839GA(R)-GAM-AX - Renesas Electronics

Description: Renesas Electronics UPD70F3839GA(R)-GAM-AX, 32bit V850ES Microcontroller, 20MHz, 256 kB Flash, 48-Pin LQFP

Download UPD70F3839GA(R)-GAM-AX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

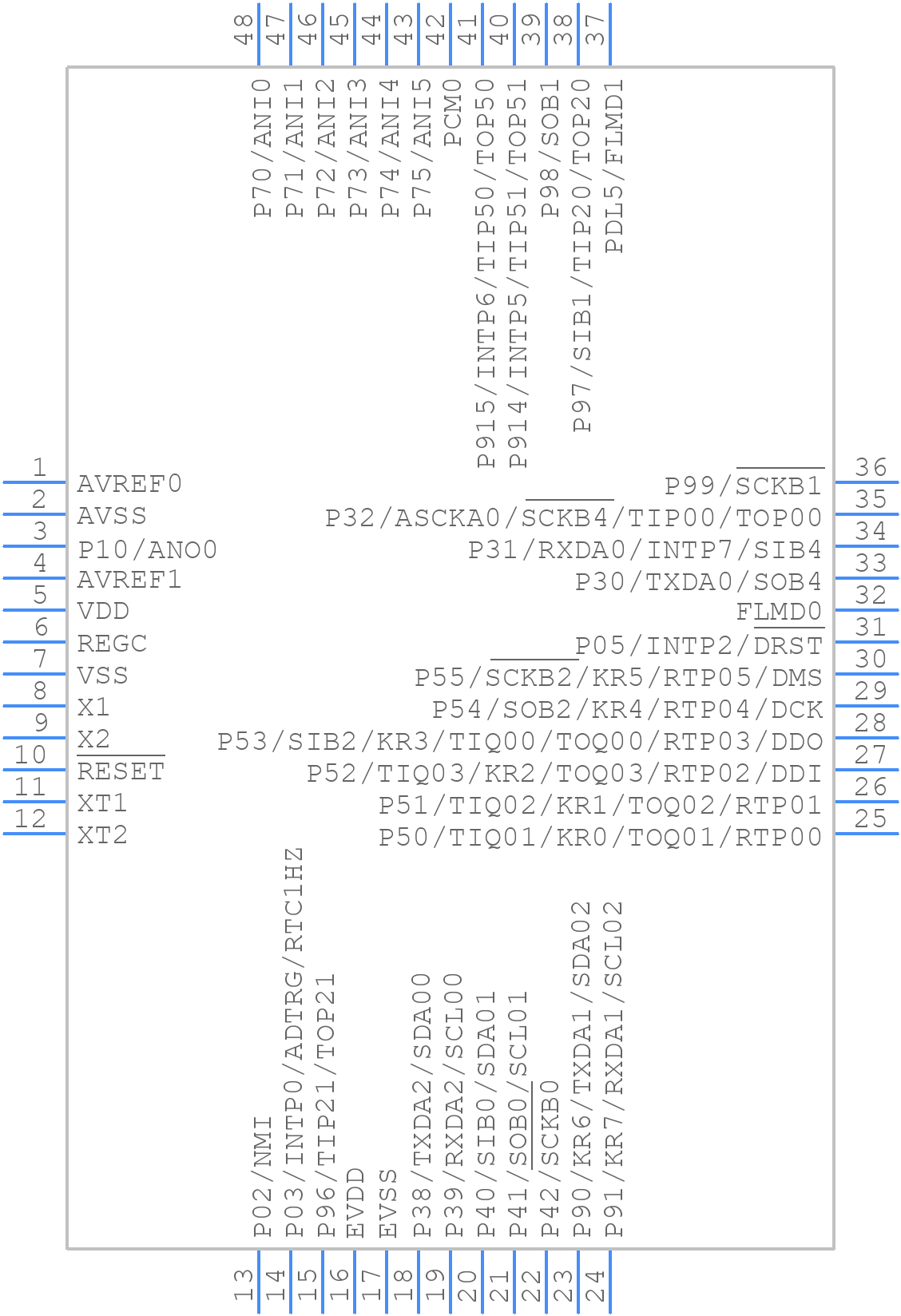

UPD70F3839GA(R)-GAM-AX - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
UPD70F3839GA(R)-GAM-AX - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-PIN PLASTIC LQFP (FINE PITCH) (7x7)-+-
click to zoom
3D Models
UPD70F3839GA(R)-GAM-AX - Renesas Electronics - 3D model - Quad Flat Packages - 48-PIN PLASTIC LQFP (FINE PITCH) (7x7)-+-
click to zoom

UPD70F3839GA(R)-GAM-AX Details

  • Manufacturer Part Number:

    UPD70F3839GA(R)-GAM-AX

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8542.31.00.25

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Has ADC:

    YES

  • Bit Size:

    32

  • Clock Frequency-Max:

    20 MHz

  • DMA Channels:

    NO

  • Length:

    7 mm

  • Number of I/O Lines:

    41

  • Number of Terminals:

    48

  • PWM Channels:

    YES

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Speed:

    20 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

UPD70F3839GA(R)-GAM-AX Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the UPD70F3839GA(R)-GAM-AX is 4.5V to 5.5V, with a typical voltage of 5V.
  • The clock settings for the UPD70F3839GA(R)-GAM-AX can be configured using the Clock Control Register (CKCR) and the Clock Source Select Register (CSSR). Refer to the datasheet for specific register settings and bit configurations.
  • The maximum clock frequency supported by the UPD70F3839GA(R)-GAM-AX is 24 MHz.
  • The ADC on the UPD70F3839GA(R)-GAM-AX can be used by configuring the ADC Control Register (ADCCR), selecting the analog input channel, and starting the conversion using the ADC Start Conversion Register (ADCS). Refer to the datasheet for specific register settings and conversion timing.
  • The Watchdog Timer (WDT) on the UPD70F3839GA(R)-GAM-AX is used to detect and recover from system failures or hangs. It can be configured to generate a reset signal if the system fails to refresh the WDT within a specified time period.
