UPD71054C - Renesas Electronics

Description: Programmable Timer/Counter

Download UPD71054C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

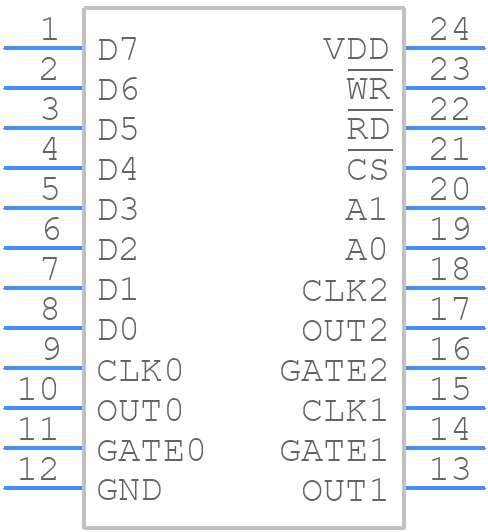

UPD71054C - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

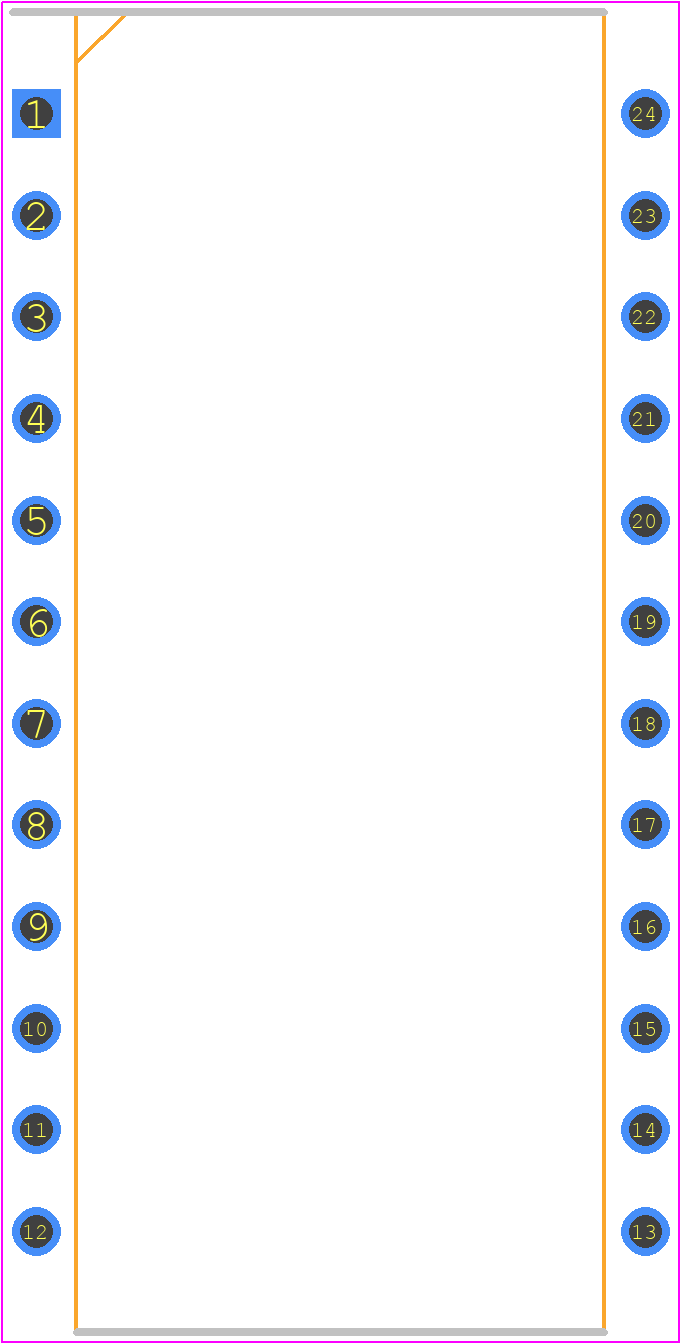

UPD71054C - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 24-PIN PLASTIC DIP
click to zoom
3D Models
UPD71054C - Renesas Electronics - 3D model - Dual-In-Line Packages - 24-PIN PLASTIC DIP
click to zoom

UPD71054C Details

  • Manufacturer Part Number:

    UPD71054C

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    0.600 INCH, PLASTIC, DIP-24

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Clock Frequency-Max:

    0.032 MHz

  • External Data Bus Width:

    8

  • Information Access Method:

    PARALLEL, DIRECT ADDRESS

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e0

  • Number of Bits:

    16

  • Number of Terminals:

    24

  • Number of Timers:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    5.72 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    15.24 mm

  • uPs/uCs/Peripheral ICs Type:

    TIMER, PROGRAMMABLE
