UPD720102GC-YEB-A - Renesas Electronics

UPD720102GC-YEB-A Details

• Manufacturer Part Number:

  UPD720102GC-YEB-A

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QFP

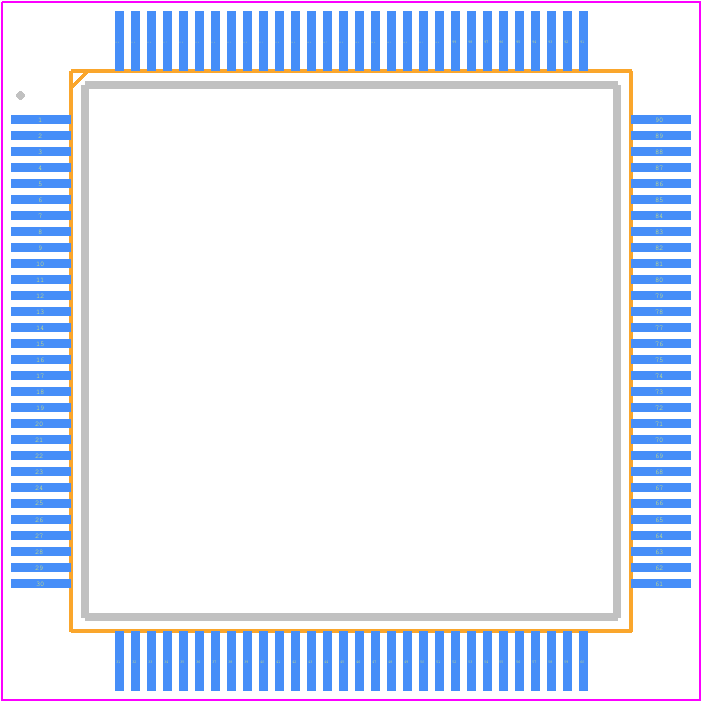

• Package Description:

  14 X 14 MM, LEAD FREE, PLASTIC, TQFP-120

• Pin Count:

  120

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.30

• Factory Lead Time:

  4 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Address Bus Width:

  32

• Bus Compatibility:

  PCI

• Clock Frequency-Max:

  48 MHz

• Data Transfer Rate-Max:

  60 MBps

• External Data Bus Width:

  32

• JESD-30 Code:

  S-PQFP-G120

• JESD-609 Code:

  e6

• Length:

  14 mm

• Number of Terminals:

  120

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -20 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TFQFP

• Package Equivalence Code:

  TQFP120,.64SQ,16

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.2 mm

• Supply Voltage-Max:

  3.465 V

• Supply Voltage-Min:

  3.135 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  OTHER

• Terminal Finish:

  Tin/Bismuth (Sn/Bi)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  60

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  BUS CONTROLLER, UNIVERSAL SERIAL BUS
