UPD720114GA-YEU-A - Renesas Electronics

UPD720114GA-YEU-A Details

• Manufacturer Part Number:

  UPD720114GA-YEU-A

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QFP

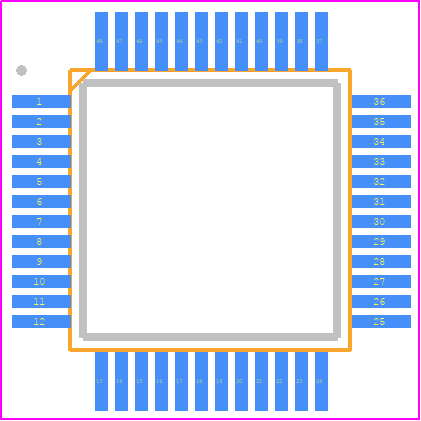

• Package Description:

  7 X 7 MM, LEAD FREE, PLASTIC, TQFP-48

• Pin Count:

  48

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.30

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Bus Compatibility:

  USB

• Clock Frequency-Max:

  30 MHz

• Data Transfer Rate-Max:

  60 MBps

• JESD-30 Code:

  S-PQFP-G48

• JESD-609 Code:

  e6

• Length:

  7 mm

• Number of Terminals:

  48

• Operating Temperature-Max:

  85 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFQFP

• Package Equivalence Code:

  TQFP48,.35SQ

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, LOW PROFILE, FINE PITCH

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.27 mm

• Supply Voltage-Max:

  3.46 V

• Supply Voltage-Min:

  3.14 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  OTHER

• Terminal Finish:

  Tin/Bismuth (Sn/Bi)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  7 mm

• uPs/uCs/Peripheral ICs Type:

  BUS CONTROLLER, UNIVERSAL SERIAL BUS
