uPD7225G00 - Renesas Electronics

uPD7225G00 Details

• Manufacturer Part Number:

  UPD7225G00

• Part Life Cycle Code:

  Obsolete

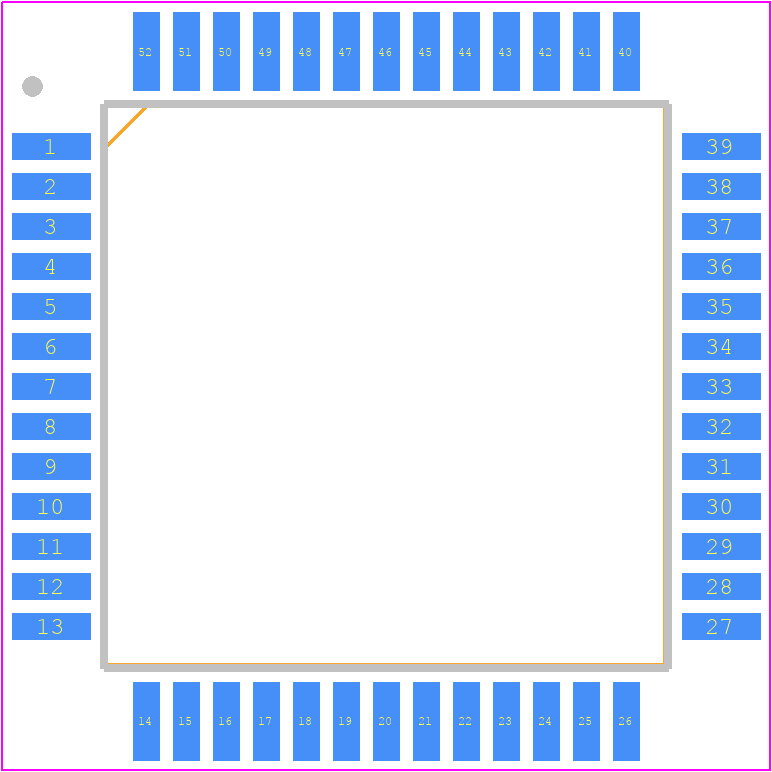

• Part Package Code:

  QFP

• Package Description:

  QFP-52

• Pin Count:

  52

• HTS Code:

  8542.31.00.30

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Clock Frequency-Max:

  0.2 MHz

• JESD-30 Code:

  S-PQFP-G52

• Length:

  14 mm

• Number of Terminals:

  52

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -10 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP52,.8SQ,40

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK

• Seated Height-Max:

  3 mm

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  MOS

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1 mm

• Terminal Position:

  QUAD

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  DISPLAY CONTROLLER, DOT MATRIX LCD DRIVER
