UPD78F0338GC-9EB-A - Renesas Electronics

UPD78F0338GC-9EB-A Details

• Manufacturer Part Number:

  UPD78F0338GC-9EB-A

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  TFQFP

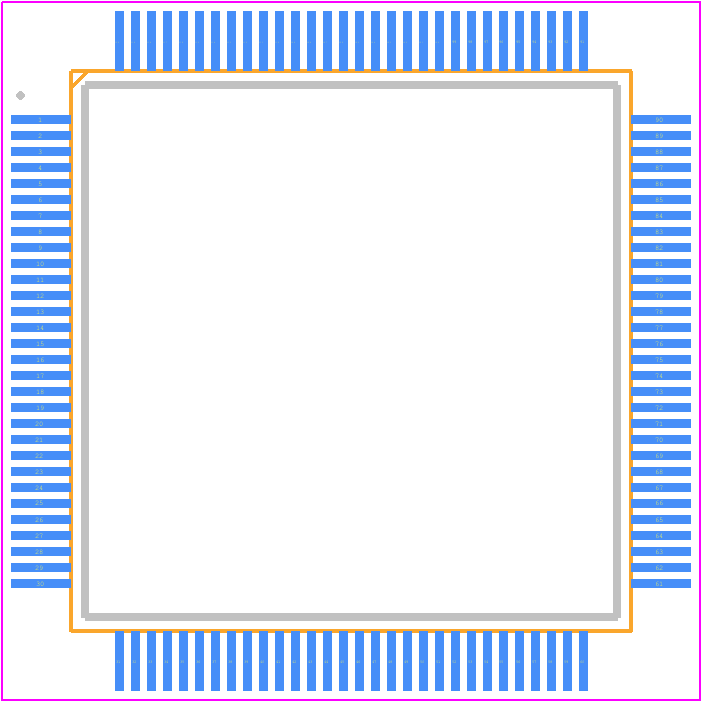

• Package Description:

  14 X 14 MM, LEAD FREE, PLASTIC, TQFP-120

• Pin Count:

  120

• Manufacturer Package Code:

  PTQP0120LB

• ECCN Code:

  5A002

• HTS Code:

  8542.31.00.15

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Has ADC:

  YES

• Additional Feature:

  OPERATES AT 1.8 V MIN SUPPLY AT 5 MHZ

• Bit Size:

  8

• Boundary Scan:

  NO

• CPU Family:

  UPD78K0

• Clock Frequency-Max:

  10 MHz

• DAC Channels:

  YES

• DMA Channels:

  NO

• JESD-30 Code:

  S-PQFP-G120

• JESD-609 Code:

  e6

• Length:

  14 mm

• Moisture Sensitivity Level:

  3

• Number of I/O Lines:

  70

• Number of Terminals:

  120

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TFQFP

• Package Equivalence Code:

  TQFP120,.64SQ,16

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• RAM (bytes):

  2560

• ROM (words):

  61440

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.2 mm

• Speed:

  10 MHz

• Supply Current-Max:

  32 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN BISMUTH

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  10

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
