UPD78F0483GC-GAD-AX footprint, schematic symbol and 3D model by Renesas Electronics

Symbol

click to zoom

PCB Footprints

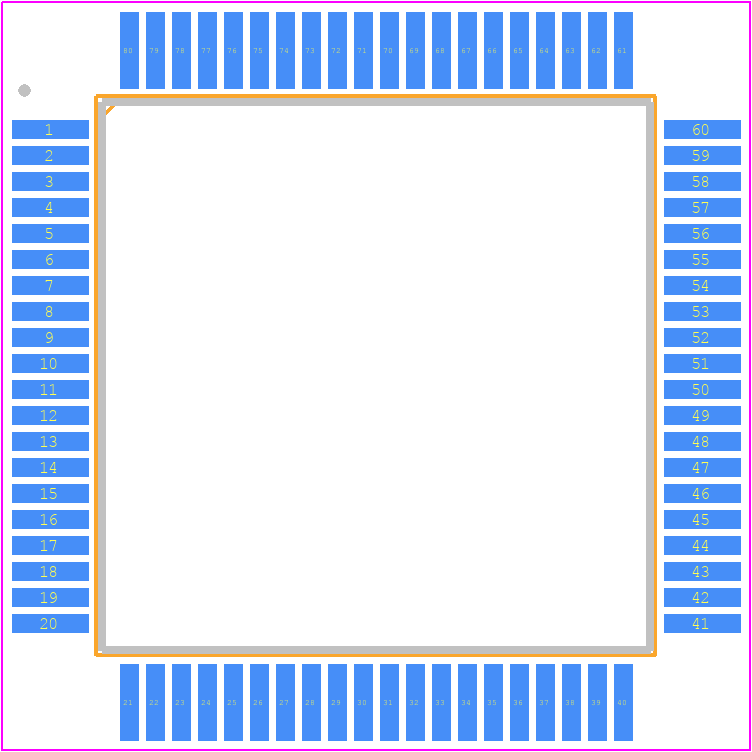

UPD78F0483GC-GAD-AX - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP (14x14)-1

click to zoom

3D Models

UPD78F0483GC-GAD-AX - Renesas Electronics - 3D model - Quad Flat Packages - LQFP (14x14)-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for UPD78F0483GC-GAD-AX
Part Number UPD78F0483GC-GAD-AX
Manufacturer Renesas Electronics
Pin Count 80
Part Category Integrated Circuit
Package Category Quad Flat Packages
Footprint Name Quad Flat Packages - LQFP (14x14)-1
Released Date Mar 30, 2021
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

UPD78F0483GC-GAD-AX Details

Manufacturer Part Number:
UPD78F0483GC-GAD-AX
Brand Name:
Renesas
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
LQFP
Pin Count:
80
Manufacturer Package Code:
PLQP0080JB
HTS Code:
8542.31.00.15
Factory Lead Time:
12 Weeks
Manufacturer:
Renesas Electronics Corporation
YTEOL:
0
Has ADC:
YES
Bit Size:
8
Boundary Scan:
NO
CPU Family:
UPD78K0
Clock Frequency-Max:
10 MHz
DAC Channels:
NO
DMA Channels:
NO
JESD-30 Code:
S-PQFP-G80
JESD-609 Code:
e4
Length:
14 mm
Number of I/O Lines:
62
Number of Terminals:
80
On Chip Program ROM Width:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
PWM Channels:
YES
Package Body Material:
PLASTIC/EPOXY
Package Code:
LQFP
Package Equivalence Code:
QFP80,.68SQ
Package Shape:
SQUARE
Package Style:
FLATPACK, LOW PROFILE
Qualification Status:
Not Qualified
RAM (bytes):
1024
ROM (words):
32768
ROM Programmability:
FLASH
Speed:
10 MHz
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
3 V
Supply Voltage-Nom:
3 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
NICKEL PALLADIUM GOLD
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
QUAD
Width:
14 mm
uPs/uCs/Peripheral ICs Type:
MICROCONTROLLER

UPD78F0483GC-GAD-AX Frequently Asked Questions (FAQs)

The recommended oscillator crystal frequency for the UPD78F0483GC-GAD-AX is 12 MHz, as specified in the datasheet. However, it's essential to note that the actual frequency may vary depending on the specific application and board design.
The watchdog timer (WDT) on the UPD78F0483GC-GAD-AX can be configured using the WDT control register (WDTCTL). You need to set the WDT clock source, timeout period, and enable the WDT. Refer to the datasheet and application notes for detailed instructions.
The maximum current that can be sourced or sunk by the I/O pins of the UPD78F0483GC-GAD-AX is 20 mA. However, it's recommended to limit the current to 10 mA or less to ensure reliable operation and prevent overheating.
The UPD78F0483GC-GAD-AX has several low-power modes, including Stop mode, Wait mode, and Hibernate mode. To implement a low-power mode, you need to configure the Power Management Control Register (PMC) and the Clock Control Register (CKC). Refer to the datasheet and application notes for detailed instructions.
The maximum operating temperature range for the UPD78F0483GC-GAD-AX is -40°C to +85°C. However, it's essential to note that the microcontroller's performance and reliability may be affected at extreme temperatures.
