UPD78F0512GA-8EU-A - Renesas Electronics

Description: The 78K0/Kx2+ Group is supported only for customers who have already adopted these products. The RL78/G13 Group is recommended for new designs.

Download UPD78F0512GA-8EU-A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

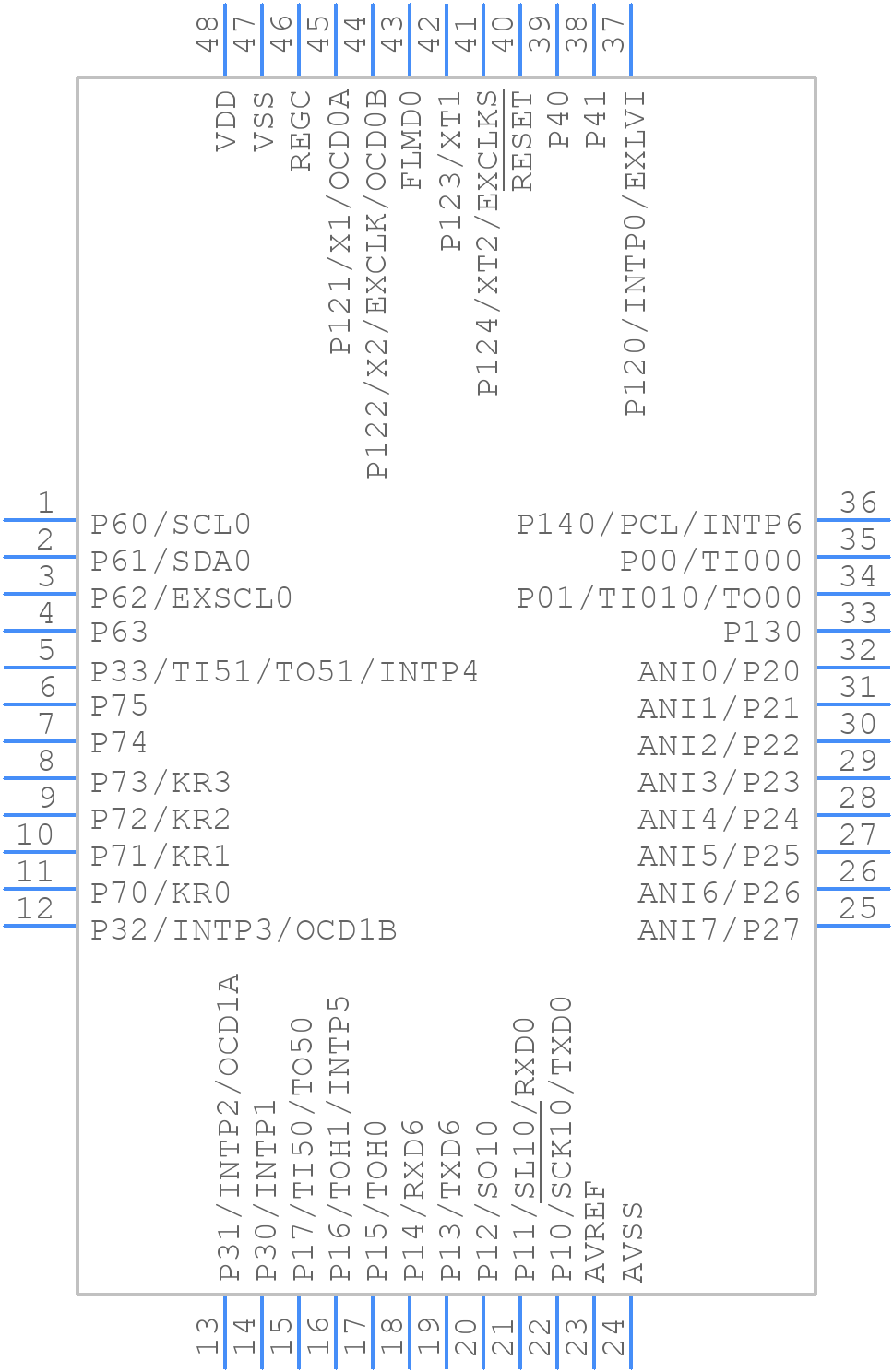

UPD78F0512GA-8EU-A - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

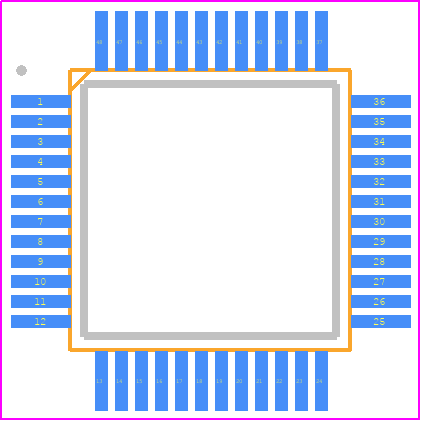

UPD78F0512GA-8EU-A - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-PIN PLASTIC LQFP (7x7)
click to zoom
3D Models
UPD78F0512GA-8EU-A - Renesas Electronics - 3D model - Quad Flat Packages - 48-PIN PLASTIC LQFP (7x7)
click to zoom

UPD78F0512GA-8EU-A Details

  • Manufacturer Part Number:

    UPD78F0512GA-8EU-A

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LQFP

  • Pin Count:

    48

  • Manufacturer Package Code:

    PLQP0048KF

  • HTS Code:

    8542.31.00.15

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Has ADC:

    YES

  • Bit Size:

    8

  • Boundary Scan:

    NO

  • CPU Family:

    UPD78K0

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e6

  • Length:

    7 mm

  • Number of I/O Lines:

    41

  • Number of Terminals:

    48

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    1024

  • ROM (words):

    24576

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.6 mm

  • Speed:

    20 MHz

  • Supply Current-Max:

    6.9 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    MOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

UPD78F0512GA-8EU-A Frequently Asked Questions (FAQs)

  • The recommended oscillator crystal frequency for the UPD78F0512GA-8EU-A is 12 MHz, as specified in the datasheet. However, it's essential to note that the actual frequency may vary depending on the specific application and board design.
  • The watchdog timer (WDT) on the UPD78F0512GA-8EU-A can be configured using the WDT control register (WDTCTL). You need to set the WDT clock source, timeout period, and enable the WDT. Refer to the datasheet and application notes for detailed instructions.
  • The maximum current that can be sourced or sunk by the I/O pins of the UPD78F0512GA-8EU-A is 20 mA. However, it's recommended to limit the current to 10 mA or less to ensure reliable operation and prevent overheating.
  • The UPD78F0512GA-8EU-A has a built-in serial communication interface (SCI) that can be configured as a UART interface. You need to set the SCI mode, baud rate, and data format using the SCI control registers. Refer to the datasheet and application notes for detailed instructions.
  • The power consumption of the UPD78F0512GA-8EU-A in sleep mode depends on the specific sleep mode and the clock frequency. According to the datasheet, the typical current consumption in sleep mode is around 10 μA to 100 μA, depending on the sleep mode and clock frequency.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UPD78F0512GA-8EU-A Overview

Use the download button to access the UPD78F0512GA-8EU-A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UPD78, or try a keyword search, such as Microcontrollers
