UPD78F1162AGF-GAS-AX - Renesas Electronics

UPD78F1162AGF-GAS-AX Details

• Manufacturer Part Number:

  UPD78F1162AGF-GAS-AX

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  LQFP

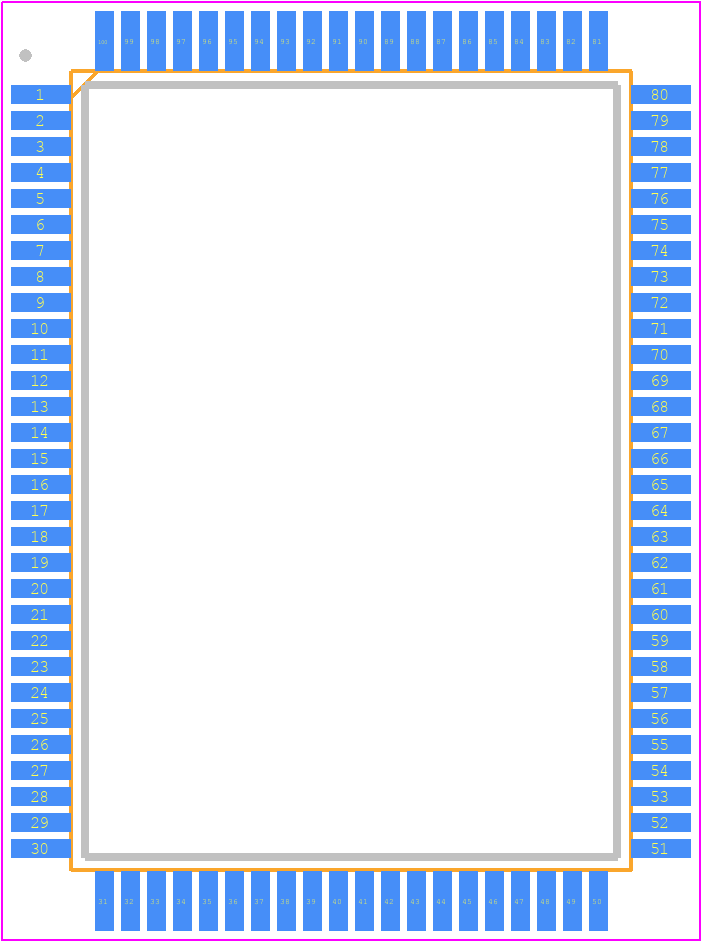

• Package Description:

  14 X 20 MM, 0.65 MM PITCH, PLASTIC, LQFP-100

• Pin Count:

  100

• Manufacturer Package Code:

  PLQP0100JD

• HTS Code:

  8542.31.00.20

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Has ADC:

  YES

• Bit Size:

  16

• Boundary Scan:

  NO

• CPU Family:

  UPD78K0

• Clock Frequency-Max:

  20 MHz

• DAC Channels:

  YES

• DMA Channels:

  YES

• JESD-30 Code:

  R-PQFP-G100

• JESD-609 Code:

  e4

• Length:

  20 mm

• Number of I/O Lines:

  88

• Number of Terminals:

  100

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LQFP

• Package Equivalence Code:

  QFP100,.63X.87

• Package Shape:

  RECTANGULAR

• Package Style:

  FLATPACK, LOW PROFILE

• Qualification Status:

  Not Qualified

• RAM (bytes):

  4096

• ROM (words):

  65536

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.6 mm

• Speed:

  20 MHz

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  2.7 V

• Supply Voltage-Nom:

  2.7 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  NICKEL PALLADIUM GOLD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
