UPD78F9201MA-CAC-A - Renesas Electronics

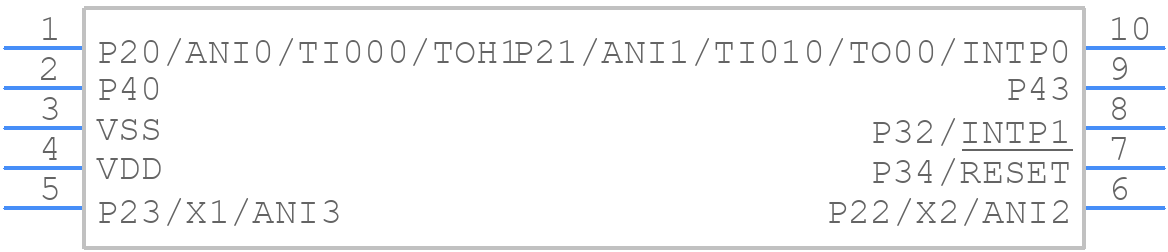

UPD78F9201MA-CAC-A Details

• Manufacturer Part Number:

  UPD78F9201MA-CAC-A

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  LSSOP

• Package Description:

  SSOP-10

• Pin Count:

  10

• Manufacturer Package Code:

  PLSP0010JA

• HTS Code:

  8542.31.00.15

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Has ADC:

  YES

• Additional Feature:

  ALSO OPERTAES WITH 3V MIN @ 6MHZ, 2.7V MIN @ 5 MHZ AND 2V MIN @ 2MHZ

• Bit Size:

  8

• Boundary Scan:

  NO

• CPU Family:

  78K0S

• Clock Frequency-Max:

  10 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  R-PDSO-G10

• JESD-609 Code:

  e6

• Length:

  4.9 mm

• Low Power Mode:

  YES

• Number of External Interrupts:

  2

• Number of I/O Lines:

  8

• Number of Terminals:

  10

• Number of Timers:

  3

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SSOP10,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Qualification Status:

  Not Qualified

• RAM (bytes):

  128

• ROM (words):

  2048

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.45 mm

• Speed:

  10 MHz

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN BISMUTH

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Width:

  3.9 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
