UPD78F9211GR - Renesas Electronics

Description: 8bit 78K0S Microcontroller, 10MHz, 2 kB Flash, 16-Pin SSOP

Download UPD78F9211GR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

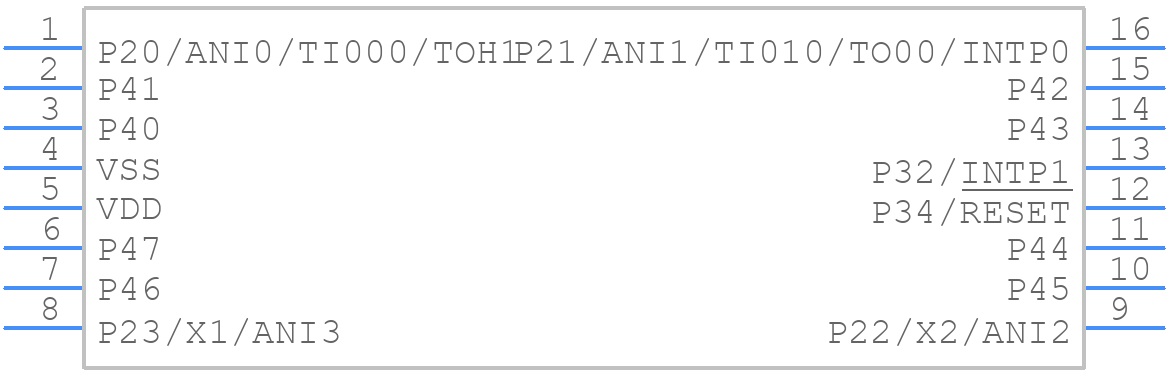

UPD78F9211GR - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
UPD78F9211GR - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 16-PIN PLASTIC SSOP (5.72 mm (225))_-1
click to zoom
3D Models
UPD78F9211GR - Renesas Electronics - 3D model - Small Outline Packages - 16-PIN PLASTIC SSOP (5.72 mm (225))_-1
click to zoom
  • Datasheet
  • Stock & Prices $ Price & Stock for UPD78F9211GR
  • Part Number UPD78F9211GR
  • Manufacturer Renesas Electronics
  • Pin Count 16
  • Part Category Integrated Circuit
  • Package Category Small Outline Packages
  • Footprint Name Small Outline Packages - 16-PIN PLASTIC SSOP (5.72 mm (225))_-1
  • Released Date Mar 28, 2021
  • Last Modified Date Oct 24, 2023 7:30 PM UTC
  • Pinout / Pin List Click Here (Member Only)
