UPD78F9234CS-CAA-A - Renesas Electronics

UPD78F9234CS-CAA-A Details

• Manufacturer Part Number:

  UPD78F9234CS-CAA-A

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

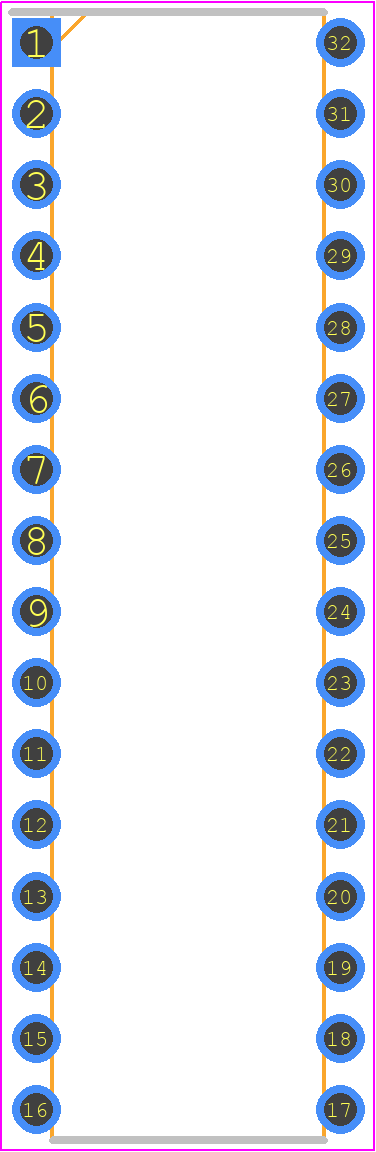

• Part Package Code:

  SDIP

• Package Description:

  0.300 INCH, LEAD FREE, PLASTIC, SDIP-32

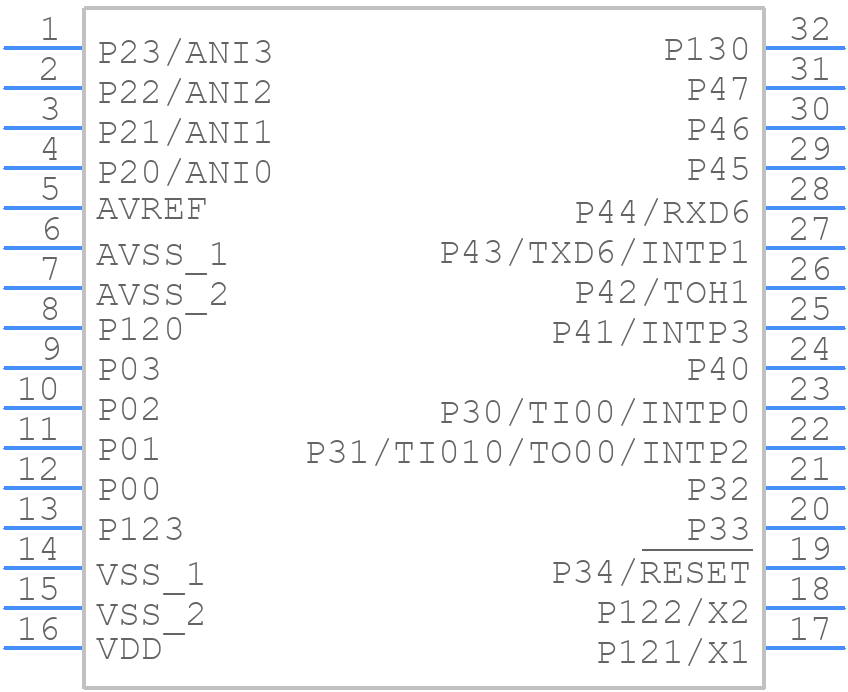

• Pin Count:

  32

• Manufacturer Package Code:

  PRDP0032BD-A32

• HTS Code:

  8542.31.00.15

• Factory Lead Time:

  4 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Has ADC:

  YES

• Bit Size:

  8

• Boundary Scan:

  NO

• CPU Family:

  UPD78K0

• Clock Frequency-Max:

  10 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• JESD-30 Code:

  R-PDIP-T32

• JESD-609 Code:

  e6

• Length:

  28.06 mm

• Number of I/O Lines:

  26

• Number of Terminals:

  32

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SDIP

• Package Equivalence Code:

  SDIP32,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE, SHRINK PITCH

• Qualification Status:

  Not Qualified

• RAM (bytes):

  256

• ROM (words):

  8192

• ROM Programmability:

  FLASH

• Seated Height-Max:

  3.6 mm

• Speed:

  10 MHz

• Supply Current-Max:

  15.2 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  2.7 V

• Supply Voltage-Nom:

  2.7 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN BISMUTH

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  1.778 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
