UPD79F7024MC-CAA-AX - Renesas Electronics

Description: Renesas Electronics UPD79F7024MC-CAA-AX Microcontroller, 20-Pin SSOP

Download UPD79F7024MC-CAA-AX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

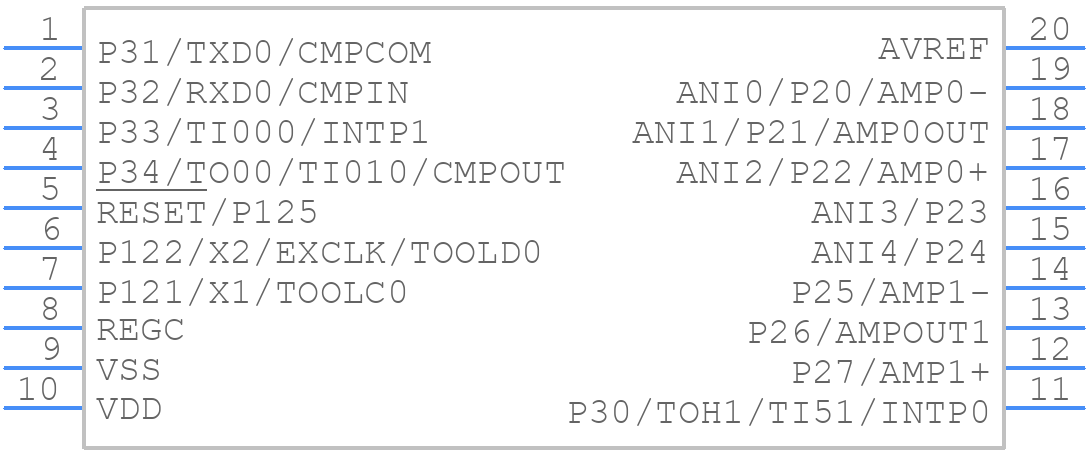

UPD79F7024MC-CAA-AX - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
UPD79F7024MC-CAA-AX - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 20-PIN SSOP
click to zoom
3D Models
UPD79F7024MC-CAA-AX - Renesas Electronics - 3D model - Small Outline Packages - 20-PIN SSOP
click to zoom

UPD79F7024MC-CAA-AX Details

  • Manufacturer Part Number:

    UPD79F7024MC-CAA-AX

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8542.31.00.15

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Has ADC:

    YES

  • Bit Size:

    8

  • Clock Frequency-Max:

    10 MHz

  • DMA Channels:

    NO

  • Length:

    6.5 mm

  • Number of I/O Lines:

    16

  • Number of Terminals:

    20

  • PWM Channels:

    YES

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Speed:

    4 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    6.1 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

UPD79F7024MC-CAA-AX Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the UPD79F7024MC-CAA-AX is 4.5V to 5.5V, with a typical voltage of 5V.
  • The clock source for the UPD79F7024MC-CAA-AX can be configured using the Clock Control Register (CCR). The CCR allows you to select between an internal clock, an external clock, or a clock generated by the Phase-Locked Loop (PLL) circuit.
  • The maximum clock frequency supported by the UPD79F7024MC-CAA-AX is 24 MHz.
  • The UPD79F7024MC-CAA-AX has a built-in watchdog timer that can be enabled and configured using the Watchdog Timer Control Register (WTCSR). The watchdog timer can be set to reset the microcontroller if it does not receive a refresh signal within a specified time period.
  • The Low-Voltage Detector (LVD) on the UPD79F7024MC-CAA-AX is used to detect when the supply voltage falls below a certain threshold. When the LVD detects a low voltage, it can generate an interrupt or reset the microcontroller to prevent data corruption or other issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UPD79F7024MC-CAA-AX Overview

Use the download button to access the UPD79F7024MC-CAA-AX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UPD79, or try a keyword search, such as Microcontrollers
