UPS-08-01-01-L-RA footprint, schematic symbol and 3D model by SAMTEC

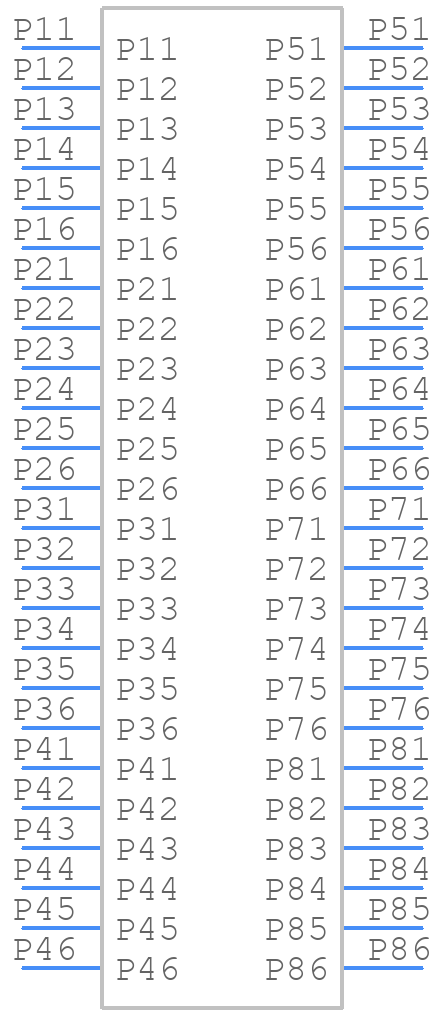

Symbol

click to zoom

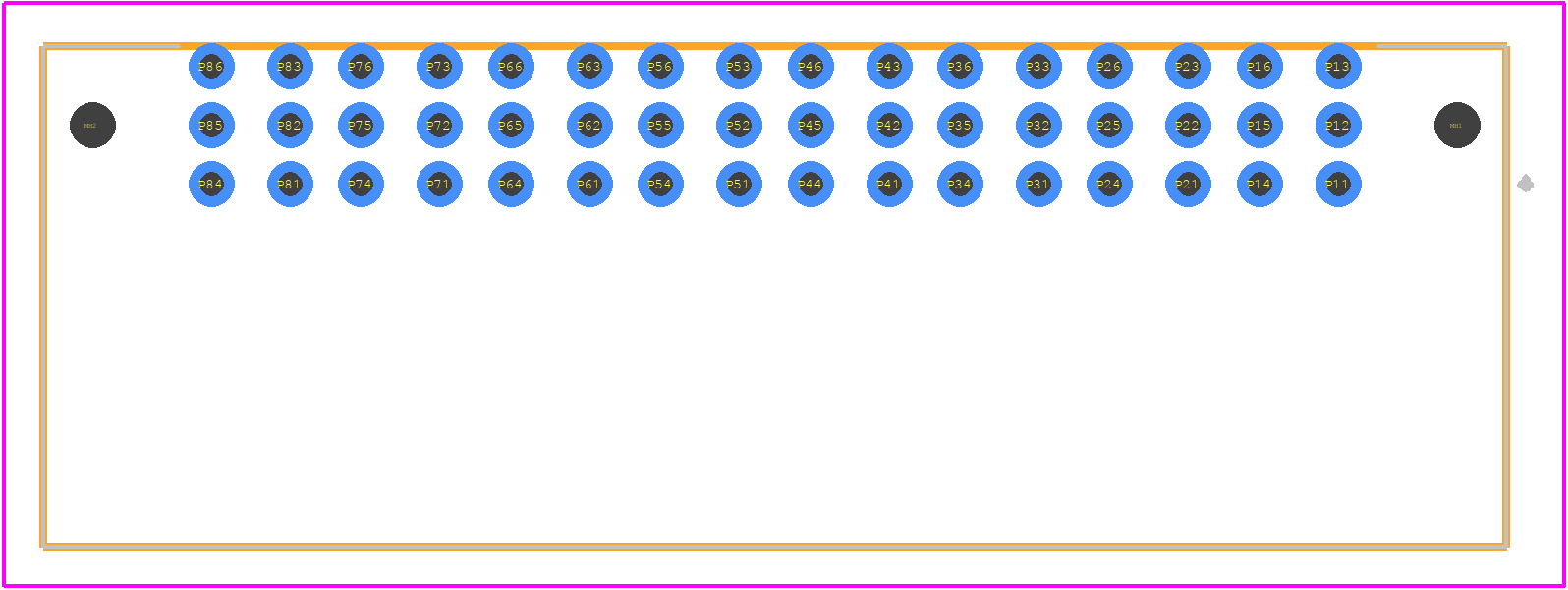

PCB Footprints

UPS-08-01-01-L-RA - SAMTEC PCB footprint - Other - Other - UPS-08-01-01-L-RA-3

click to zoom

3D Models

UPS-08-01-01-L-RA - SAMTEC - 3D model - Other - UPS-08-01-01-L-RA-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for UPS-08-01-01-L-RA
Part Number UPS-08-01-01-L-RA
Manufacturer SAMTEC
Pin Count 48
Part Category Connector
Package Category Other
Footprint Name Other - UPS-08-01-01-L-RA-3
Released Date May 4, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

UPS-08-01-01-L-RA Details

Manufacturer Part Number:
UPS-08-01-01-L-RA
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
1 Week
Manufacturer:
Samtec Inc
YTEOL:
7
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Matte Tin (Sn)
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
8

UPS-08-01-01-L-RA Frequently Asked Questions (FAQs)

The recommended torque for the screws on the UPS-08-01-01-L-RA connector is 0.5-1.5 in-lbs (0.056-0.169 Nm).
Yes, the UPS-08-01-01-L-RA connector is designed to withstand high-vibration environments and is suitable for applications such as aerospace, industrial, and transportation.
Yes, the UPS-08-01-01-L-RA connector is designed to operate in harsh environments, including extreme temperatures, humidity, and exposure to chemicals.
The UPS-08-01-01-L-RA connector has a mating cycle life of 500 cycles minimum.
Yes, the UPS-08-01-01-L-RA connector is RoHS and REACH compliant, making it suitable for use in European Union countries.

Trust Checks

Expert Contribution

System Verified

Community Approved

UPS-08-01-01-L-RA Overview

Use the download button to access the UPS-08-01-01-L-RA schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like UPS-0, or try a keyword search, such as Power Connectors
