UPS-08-04.0-01-L-V footprint, schematic symbol and 3D model by SAMTEC

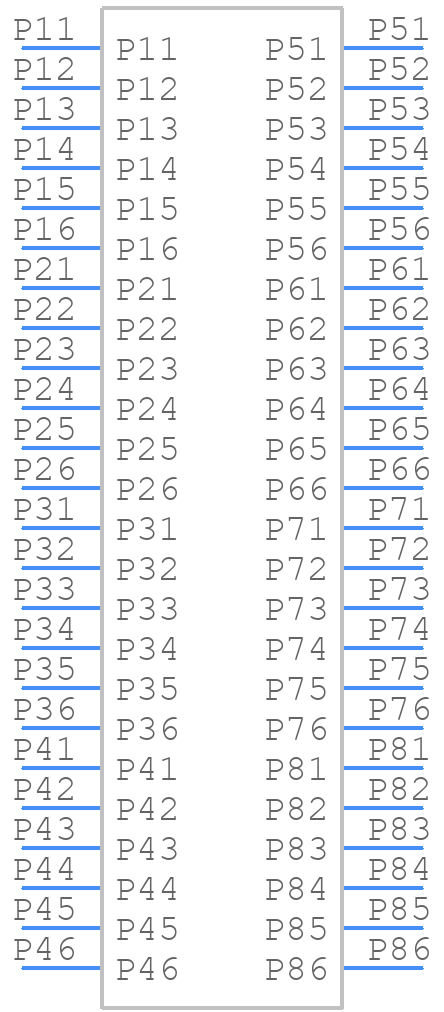

Symbol

click to zoom

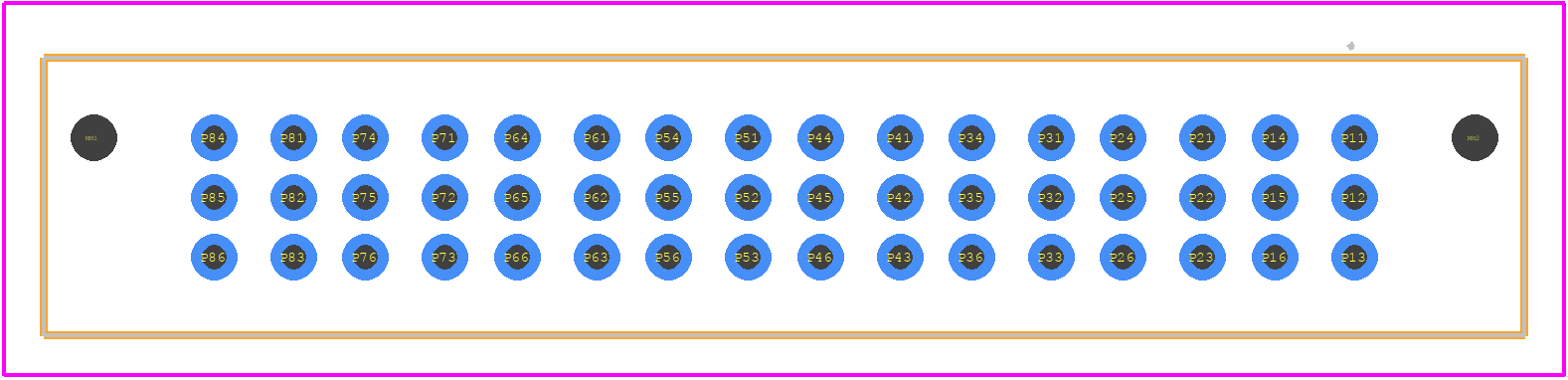

PCB Footprints

UPS-08-04.0-01-L-V - SAMTEC PCB footprint - Other - Other - UPS-08-04.0-01-L-V-2

click to zoom

3D Models

UPS-08-04.0-01-L-V - SAMTEC - 3D model - Other - UPS-08-04.0-01-L-V-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for UPS-08-04.0-01-L-V
Part Number UPS-08-04.0-01-L-V
Manufacturer SAMTEC
Pin Count 48
Part Category Connector
Package Category Other
Footprint Name Other - UPS-08-04.0-01-L-V-2
Released Date May 4, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

UPS-08-04.0-01-L-V Details

Manufacturer Part Number:
UPS-08-04.0-01-L-V
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
2 Weeks, 6 Days
Manufacturer:
Samtec Inc
YTEOL:
7
Additional Feature:
POWER STRIP10
Body/Shell Style:
SOCKET
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Matte Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
8

UPS-08-04.0-01-L-V Frequently Asked Questions (FAQs)

The recommended mating sequence for the UPS-08-04.0-01-L-V connector is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
Yes, the UPS-08-04.0-01-L-V connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications with high shock and vibration.
The maximum operating temperature for the UPS-08-04.0-01-L-V connector is 125°C (257°F). It is designed to operate in a wide range of temperatures, making it suitable for use in various industrial and commercial applications.
Yes, the UPS-08-04.0-01-L-V connector is designed to be compatible with automated assembly processes. It has a pick-and-place compatible design and can be easily assembled using automated machinery.
The typical lead time for delivery of the UPS-08-04.0-01-L-V connector varies depending on the quantity and availability. However, Samtec Inc typically offers a lead time of 1-2 weeks for standard orders and 4-6 weeks for custom orders.

Trust Checks

Expert Contribution

System Verified

Community Approved

UPS-08-04.0-01-L-V Overview

Use the download button to access the UPS-08-04.0-01-L-V schematic symbol, PCB footprint, and 3D model.
