UPT-02-03.0-01-L-V - SAMTEC

Description: SAMTEC - UPT-02-03.0-01-L-V . - CONNECTOR, HEADER, 2POS, 1ROW, 3.81MM

Download UPT-02-03.0-01-L-V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

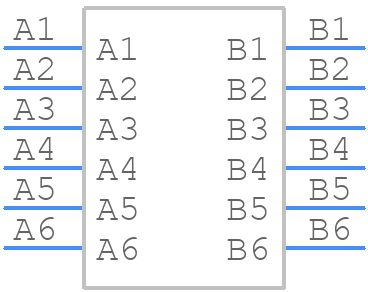

Symbol
UPT-02-03.0-01-L-V - SAMTEC - PCB symbol
click to zoom

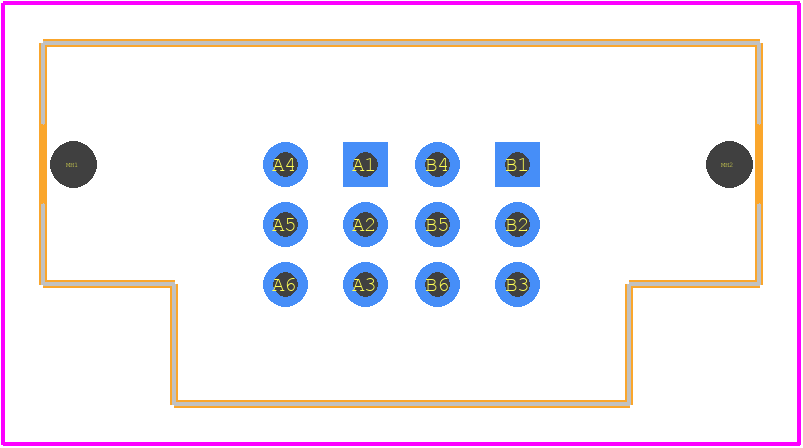

PCB Footprints
UPT-02-03.0-01-L-V - SAMTEC PCB footprint - Other - Other - UPT-02-03.0-01-L-V-4
click to zoom
3D Models
UPT-02-03.0-01-L-V - SAMTEC - 3D model - Other - UPT-02-03.0-01-L-V-4
click to zoom

UPT-02-03.0-01-L-V Details

  • Manufacturer Part Number:

    UPT-02-03.0-01-L-V

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    7.5

  • Additional Feature:

    POWER STRIP10

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    GOLD

  • Contact Finish Termination:

    Matte Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    BERYLLIUM COPPER

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    2

  • UL Flammability Code:

    94V-0

UPT-02-03.0-01-L-V Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the UPT-02-03.0-01-L-V connector is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
  • Yes, the UPT-02-03.0-01-L-V connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications with high shock and vibration.
  • The operating temperature range for the UPT-02-03.0-01-L-V connector is -55°C to 125°C. However, it's recommended to consult the datasheet for specific temperature ratings for different applications.
  • The UPT-02-03.0-01-L-V connector has a sealed design that provides protection against moisture and other environmental factors. However, it's essential to consult the datasheet and Samtec's environmental testing documentation to ensure the connector meets the specific requirements of your application.
  • The recommended torque for the screw locks on the UPT-02-03.0-01-L-V connector is 0.5-1.5 in-lbs (0.056-0.169 Nm). It's essential to follow the recommended torque to ensure proper mating and prevent damage to the connector.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UPT-02-03.0-01-L-V Overview

Use the download button to access the UPT-02-03.0-01-L-V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UPT-0, or try a keyword search, such as Power Connectors
