UPT-06-03.0-01-L-V - SAMTEC

Description: .150" PowerStrip™/20 A Dual Blade Power Terminal Strip

Download UPT-06-03.0-01-L-V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

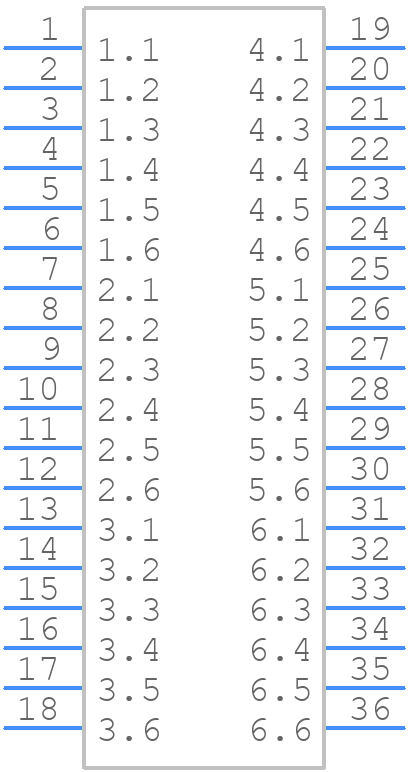

Symbol
UPT-06-03.0-01-L-V - SAMTEC - PCB symbol
click to zoom

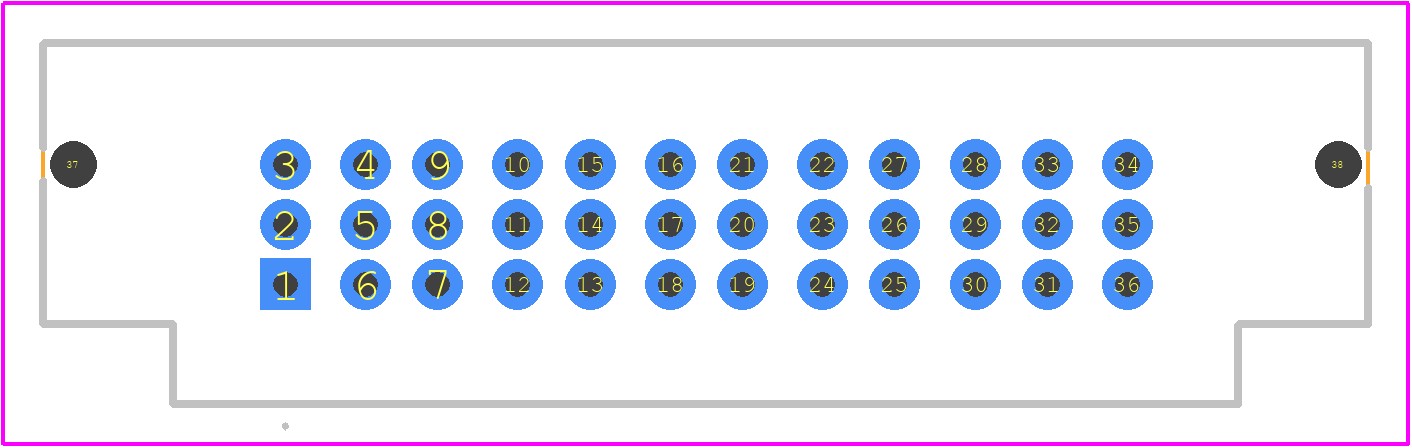

PCB Footprints
UPT-06-03.0-01-L-V - SAMTEC PCB footprint - Other - Other - UPT-06-03.0-01-L-V-4
click to zoom
3D Models
UPT-06-03.0-01-L-V - SAMTEC - 3D model - Other - UPT-06-03.0-01-L-V-4
click to zoom

UPT-06-03.0-01-L-V Details

  • Manufacturer Part Number:

    UPT-06-03.0-01-L-V

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    7.5

  • Additional Feature:

    POWER STRIP10

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    GOLD

  • Contact Finish Termination:

    Matte Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    BERYLLIUM COPPER

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-0

UPT-06-03.0-01-L-V Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, the UPT-06-03.0-01-L-V connector is designed to withstand high-vibration environments. Samtec recommends following their application notes for proper mounting and screw torque to ensure reliable performance.
  • The maximum operating temperature for the UPT-06-03.0-01-L-V connector is 125°C (257°F) according to Samtec's datasheet.
  • The UPT-06-03.0-01-L-V connector is not sealed, so it's not recommended for use in humid or wet environments. If exposure to moisture is a concern, consider using a sealed or waterproof connector.
  • The mating cycle life of the UPT-06-03.0-01-L-V connector is 500 cycles minimum according to Samtec's datasheet.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UPT-06-03.0-01-L-V Overview

Use the download button to access the UPT-06-03.0-01-L-V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UPT-0, or try a keyword search, such as Power Connectors
