UPT-08-01-01-L-RA footprint, schematic symbol and 3D model by SAMTEC

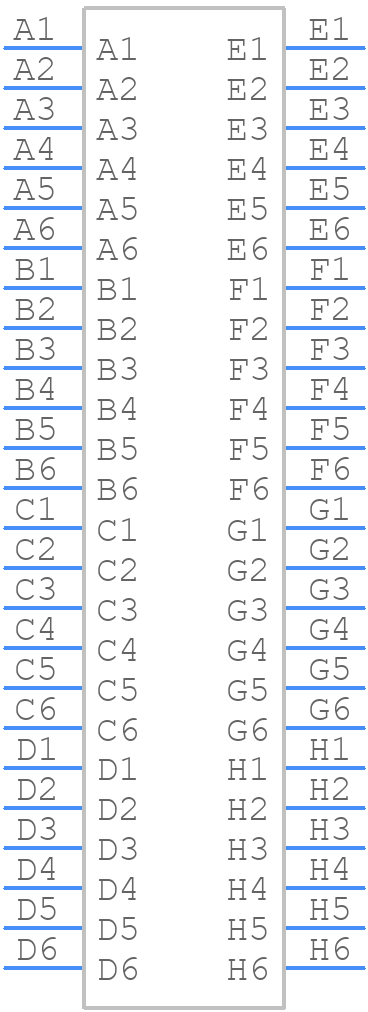

Symbol

click to zoom

PCB Footprints

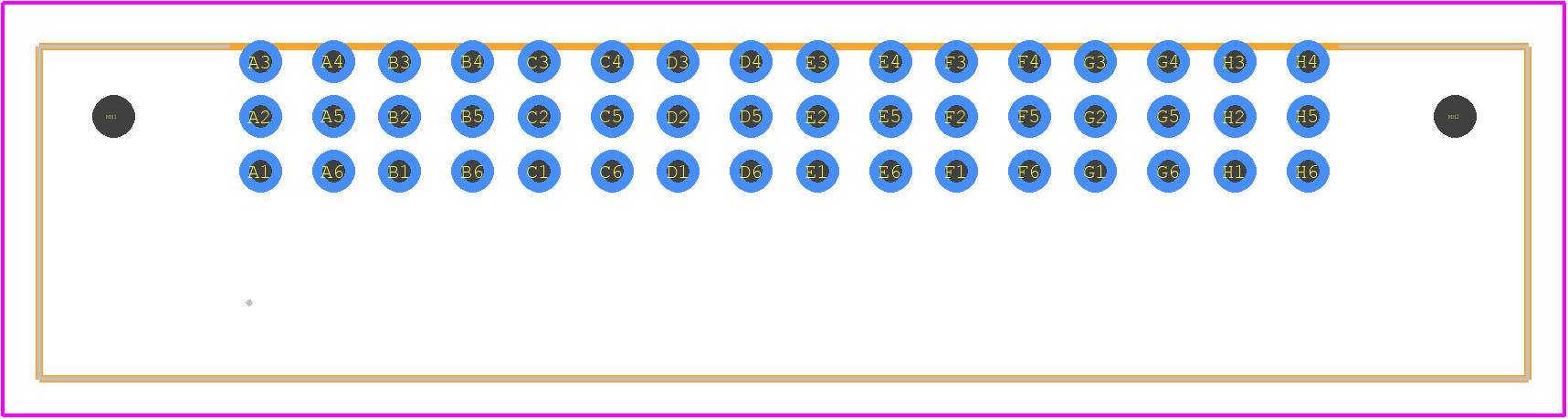

UPT-08-01-01-L-RA - SAMTEC PCB footprint - Other - Other - UPT-08-01-01-L-RA-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for UPT-08-01-01-L-RA
Part Number UPT-08-01-01-L-RA
Manufacturer SAMTEC
Pin Count 48
Part Category Connector
Package Category Other
Footprint Name Other - UPT-08-01-01-L-RA-2
Released Date Jun 30, 2020
Last Modified Date Sep 9, 2025 9:48 AM UTC
Pinout / Pin List Click Here (Member Only)

UPT-08-01-01-L-RA Details

Manufacturer Part Number:
UPT-08-01-01-L-RA
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
1 Week
Manufacturer:
Samtec Inc
YTEOL:
7.5
Additional Feature:
POWER STRIP10
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
GOLD
Contact Finish Termination:
Matte Tin (Sn)
Contact Gender:
MALE
Contact Material:
BERYLLIUM COPPER
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
8

UPT-08-01-01-L-RA Frequently Asked Questions (FAQs)

The recommended torque for the screws on the UPT-08-01-01-L-RA connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the UPT-08-01-01-L-RA connector is designed for high-speed signals and can support frequencies up to 10 Gbps.
The operating temperature range for the UPT-08-01-01-L-RA connector is -40°C to 125°C, according to Samtec's datasheet.
Yes, the UPT-08-01-01-L-RA connector is designed to withstand high-vibration environments and meets the IEC 61373 Cat 2 vibration standard.
Yes, the UPT-08-01-01-L-RA connector is RoHS and REACH compliant, meeting the European Union's directives for restricted substances and hazardous materials.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

UPT-08-01-01-L-RA Overview

Use the download button to access the UPT-08-01-01-L-RA schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like UPT-0, or try a keyword search, such as Power Connectors
