UPT-08-03.0-01-L-V footprint, schematic symbol and 3D model by SAMTEC

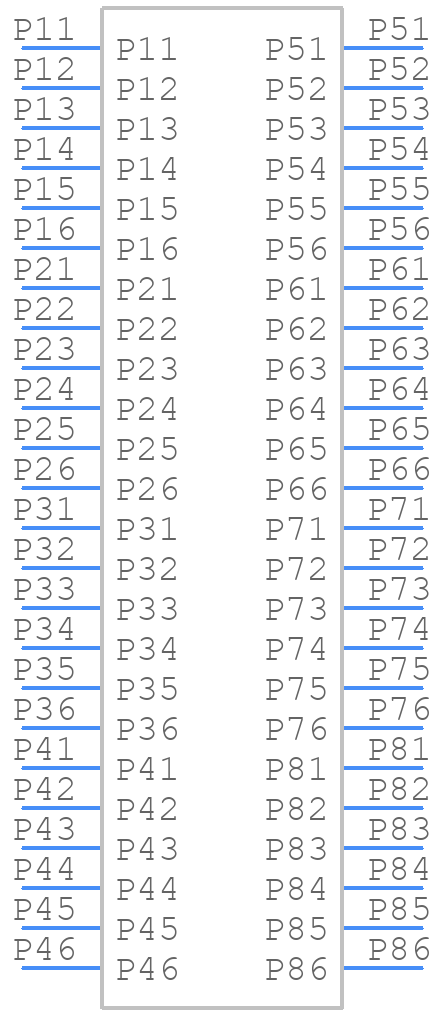

Symbol

click to zoom

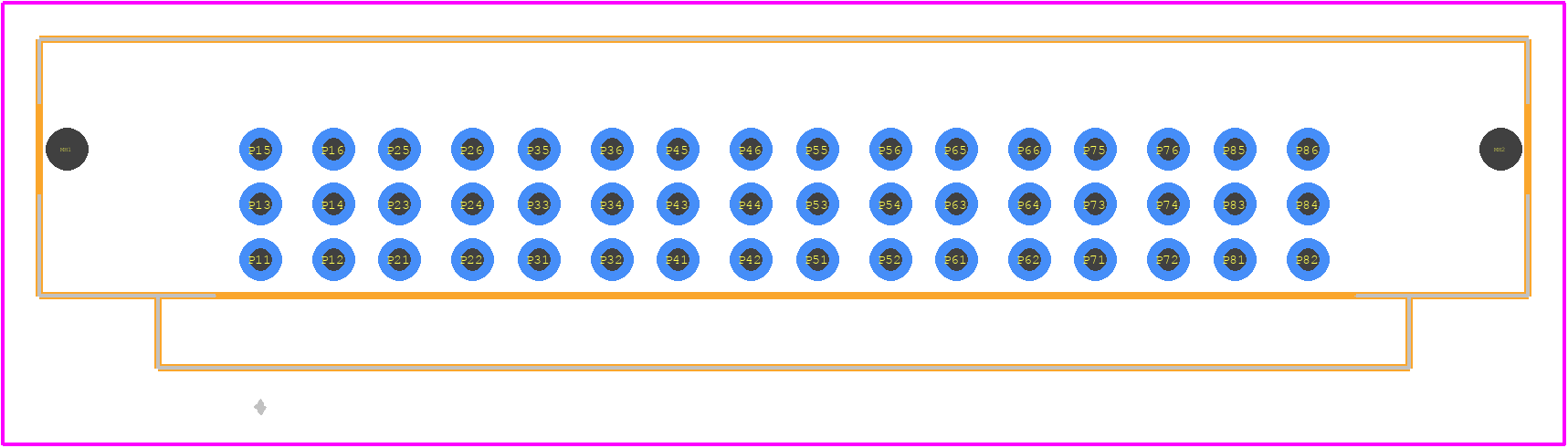

PCB Footprints

UPT-08-03.0-01-L-V - SAMTEC PCB footprint - Other - Other - UPT-08-03.0-01-L-V-1

click to zoom

3D Models

UPT-08-03.0-01-L-V - SAMTEC - 3D model - Other - UPT-08-03.0-01-L-V-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for UPT-08-03.0-01-L-V
Part Number UPT-08-03.0-01-L-V
Manufacturer SAMTEC
Pin Count 48
Part Category Connector
Package Category Other
Footprint Name Other - UPT-08-03.0-01-L-V-1
Released Date Jun 30, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

UPT-08-03.0-01-L-V Details

Manufacturer Part Number:
UPT-08-03.0-01-L-V
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
1 Week
Manufacturer:
Samtec Inc
YTEOL:
7.5
Additional Feature:
POWER STRIP10
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
GOLD
Contact Finish Termination:
Matte Tin (Sn)
Contact Gender:
MALE
Contact Material:
BERYLLIUM COPPER
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
8
UL Flammability Code:
94V-0

UPT-08-03.0-01-L-V Frequently Asked Questions (FAQs)

The recommended torque is 0.5-1.5 in-lbs (0.056-0.169 Nm) for the screws on the UPT-08-03.0-01-L-V connector.
Yes, the UPT-08-03.0-01-L-V connector is designed to withstand high-vibration environments and is suitable for applications with vibration levels up to 20 G.
Yes, the UPT-08-03.0-01-L-V connector is designed to operate in harsh environments, including temperatures ranging from -55°C to 125°C and humidity levels up to 95% RH.
The UPT-08-03.0-01-L-V connector has a mating cycle life of 500 cycles minimum.
Yes, the UPT-08-03.0-01-L-V connector is RoHS and REACH compliant, meeting the requirements of the European Union's directives on the restriction of hazardous substances.

Trust Checks

Expert Contribution

System Verified

Community Approved

UPT-08-03.0-01-L-V Overview

Use the download button to access the UPT-08-03.0-01-L-V schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like UPT-0, or try a keyword search, such as Power Connectors
