MORNSUN recommends a PCB layout with a large copper area connected to the tab of the device to dissipate heat effectively. A minimum of 2oz copper thickness is recommended, and the copper area should be connected to a solid ground plane to reduce thermal resistance.
To ensure stable and regulated output voltage, it is recommended to use a minimum output capacitance of 10uF with a low ESR (Equivalent Series Resistance) and a voltage rating of at least 30V. Additionally, the input voltage should be within the specified range, and the device should be operated within the recommended ambient temperature range.
The maximum allowable ripple current for the input capacitors depends on the specific capacitor type and rating. As a general guideline, MORNSUN recommends limiting the ripple current to less than 20% of the capacitor's rated ripple current to ensure reliable operation and long lifespan.
The URA2412LD-30WR3 is a commercial-grade device, and its reliability and performance may not meet the requirements of high-reliability or safety-critical applications. For such applications, MORNSUN recommends using their industrial-grade or automotive-grade products, which are designed and tested to meet more stringent reliability and performance requirements.
To troubleshoot issues with the device, MORNSUN recommends checking the input voltage, output load, and ambient temperature to ensure they are within the specified ranges. Additionally, checking the PCB layout and thermal design can help identify potential issues. If the problem persists, contacting MORNSUN's technical support or a local distributor for assistance is recommended.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
URA2412LD-30WR3 Overview

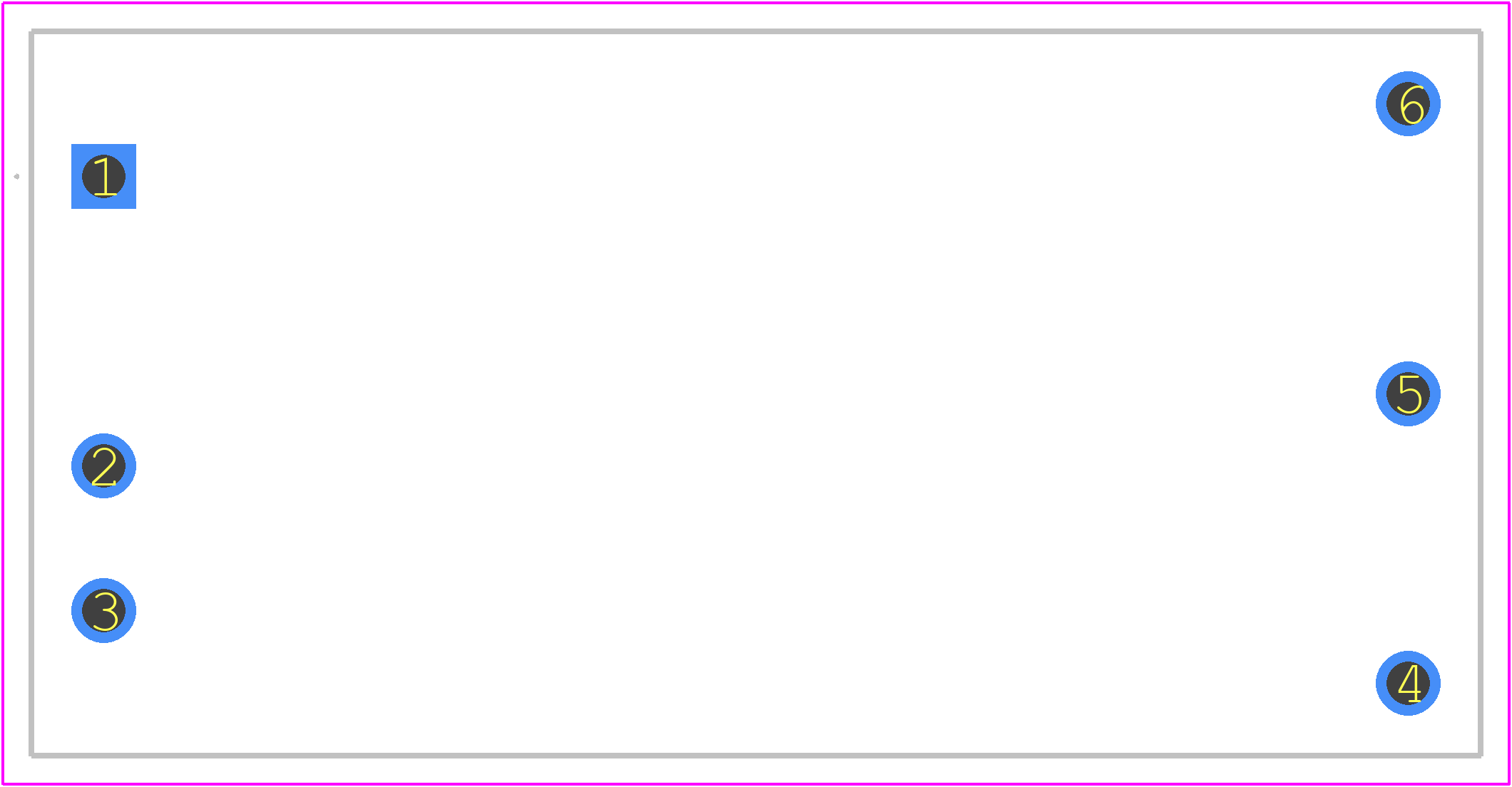

Use the download button to access the URA2412LD-30WR3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like URA24,
or try a keyword search, such as Power Supply Modules
