URA2415ZP-10WR3 - Morunsun

URA2415ZP-10WR3 Details

• Manufacturer Part Number:

  URA2415ZP-10WR3

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

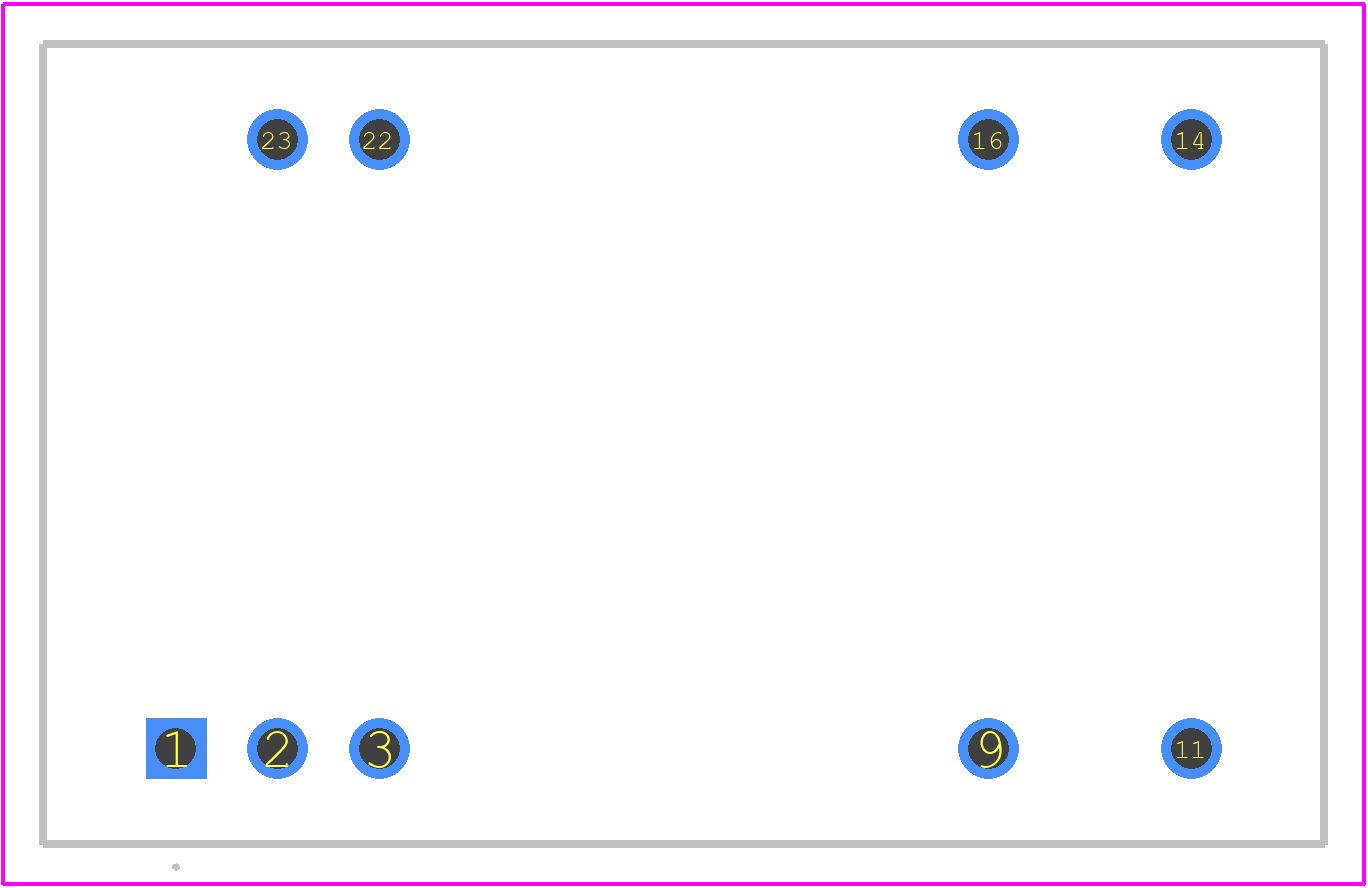

• Package Description:

  DIP-23/9

• ECCN Code:

  EAR99

• Manufacturer:

  MORNSUN

• YTEOL:

  5

• Additional Feature:

  -15 ADDITIONAL OUTPUT IS AVAILABLE

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  IEC, EN

• Efficiency (Main Output):

  87%

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  9 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-XDIP-P9

• Length:

  32 mm

• Line Regulation-Max:

  1%

• Load Regulation-Max:

  1.5%

• Number of Functions:

  1

• Number of Outputs:

  2

• Number of Terminals:

  9

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.333 A

• Output Voltage-Max:

  15.45 V

• Output Voltage-Min:

  14.55 V

• Output Voltage-Nom:

  15 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  DIP

• Package Equivalence Code:

  DIP9/23,0.6

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Protections:

  OVER CURRENT, OVER VOLTAGE, SHORT CIRCUIT, UNDER VOLTAGE

• Ripple Voltage (Main Out):

  0.02828 Vrms

• Screening Level:

  EN 62368-1

• Seated Height-Max:

  10.3 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Form:

  PIN/PEG

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Total Power Output-Max:

  10 W

• Trim/Adjustable Output:

  NO

• Width:

  20 mm
