URAM2CN1 - VICOR

Description: URAM 'C' 20A LPG SLOT

Download URAM2CN1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

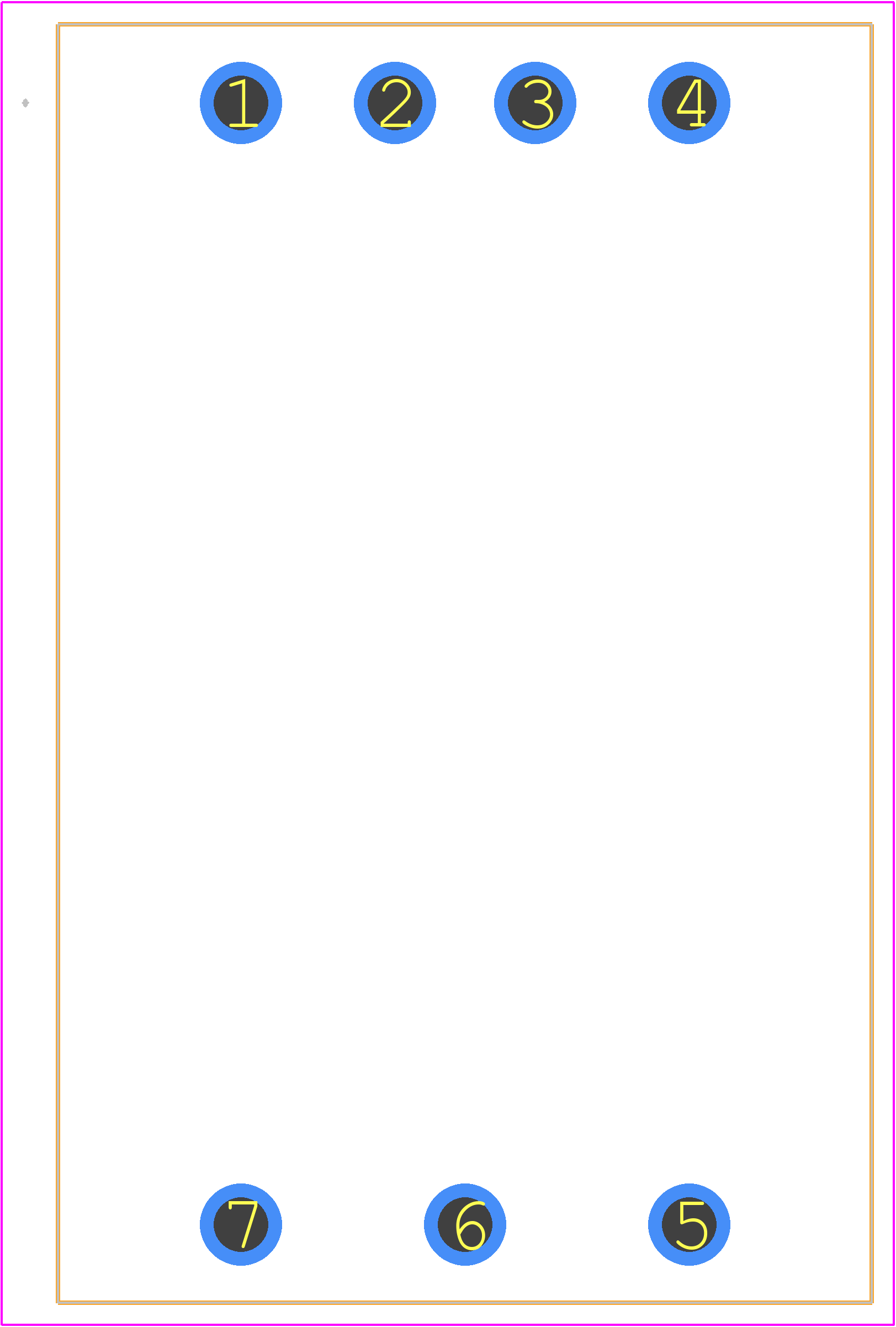

URAM2CN1 - VICOR PCB footprint - Other - Other - URAM2CN1-1
click to zoom
3D Models
URAM2CN1 - VICOR  - 3D model - Other - URAM2CN1-1
click to zoom

URAM2CN1 Details

  • Manufacturer Part Number:

    URAM2CN1

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFM

  • Pin Count:

    7

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Vicor Corporation

  • Additional Feature:

    OPERATING INPUT VOLTAGE: 3V TO 30V

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-XDFM-P7

  • JESD-609 Code:

    e4

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max (Vsup):

    30 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

URAM2CN1 Frequently Asked Questions (FAQs)

  • Vicor recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure good thermal conductivity. Additionally, keeping the PCB as thin as possible and using a high-thermal-conductivity material can help to reduce thermal resistance.
  • To ensure reliable operation in high-vibration environments, Vicor recommends using a secure mounting method, such as screwing the module to the PCB or using a vibration-dampening material. Additionally, ensuring that the PCB is properly secured to the chassis and using a conformal coating can help to reduce the risk of vibration-induced failures.
  • While the URAM2CN1 has built-in EMI filtering, it may not be sufficient for all applications. Vicor recommends that designers consider additional external EMI filtering components to ensure compliance with relevant EMI standards, especially in high-frequency or high-power applications.
  • Yes, the URAM2CN1 can be used in a redundant or N+1 configuration to ensure high availability and reliability. Vicor recommends using a diode-ORing or active-ORing scheme to ensure that the output voltage remains stable in the event of a failure.
  • Vicor recommends using a minimum of 10uF of input capacitance to ensure stable operation and to reduce the risk of input voltage ripple. However, the actual capacitance required may vary depending on the specific application and input voltage characteristics.
