URF1D48HB-150WHR3 - Mornsun Power

URF1D48HB-150WHR3 Details

• Manufacturer Part Number:

  URF1D48HB-150WHR3

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

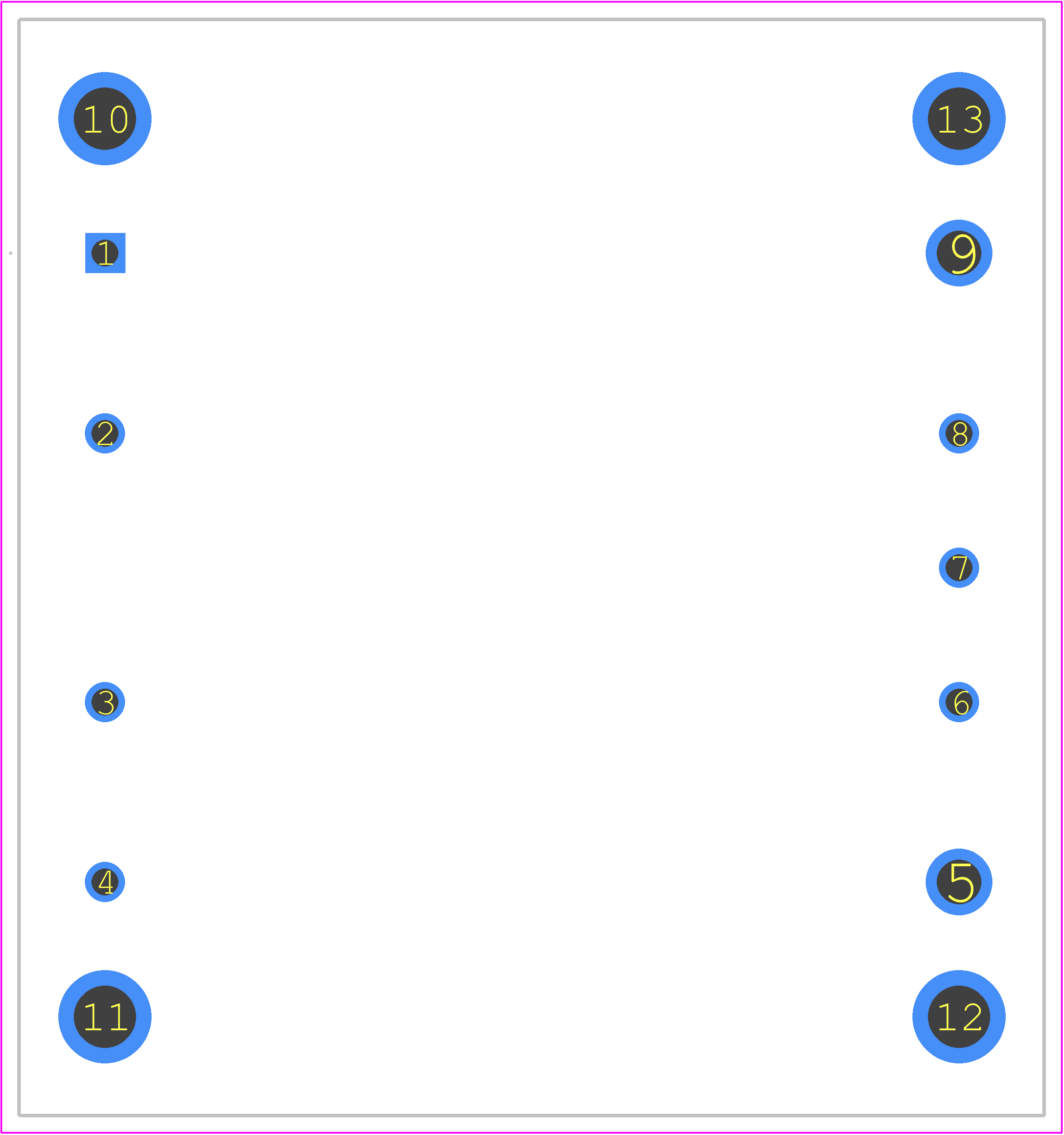

• Package Description:

  1/2 BRICK PACKAGE-9

• ECCN Code:

  EAR99

• Manufacturer:

  MORNSUN

• YTEOL:

  7.1

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  CE; IEC; EN

• Efficiency (Main Output):

  88%

• Input Voltage-Max:

  160 V

• Input Voltage-Min:

  43 V

• Input Voltage-Nom:

  110 V

• JESD-30 Code:

  R-PDMA-P9

• Length:

  62 mm

• Line Regulation-Max:

  0.3%

• Load Regulation-Max:

  0.5%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  9

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  3.12 A

• Output Voltage-Max:

  52.8 V

• Output Voltage-Min:

  43.2 V

• Output Voltage-Nom:

  48 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DMA

• Package Equivalence Code:

  MODULE,9LEAD,1.9

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Protections:

  OVER CURRENT; UNDER VOLTAGE; OVER VOLTAGE; OVER TEMPERATURE; SHORT CIR

• Ripple Voltage (Main Out):

  0.10605 Vrms

• Seated Height-Max:

  32.8 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Total Power Output-Max:

  150 W

• Trim/Adjustable Output:

  YES

• Width:

  58 mm
