US5881LSE-AAA-000-RE - Melexis

Description: Board Mount Hall Effect / Magnetic Sensors Bop/Brp: 20 / 25 mT TC= 0ppm/ C Vdd= 3.5 - 24V

Download US5881LSE-AAA-000-RE Model

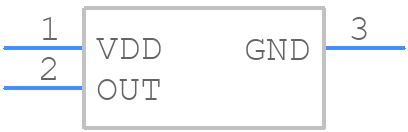

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
US5881LSE-AAA-000-RE - Melexis PCB footprint - SOT23 (3-Pin) - SOT23 (3-Pin) - SE
click to zoom
3D Models
US5881LSE-AAA-000-RE - Melexis  - 3D model - SOT23 (3-Pin) - SE
click to zoom

US5881LSE-AAA-000-RE Details

  • Manufacturer Part Number:

    US5881LSE-AAA-000-RE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSOT-3

  • Manufacturer:

    Melexis Microelectronic Integrated Systems

  • YTEOL:

    6

  • Additional Feature:

    REVERSE POLARITY PROTECTION

  • Body Breadth:

    1.6 mm

  • Body Height:

    0.875 mm

  • Body Length or Diameter:

    2.9 mm

  • Housing:

    PLASTIC

  • Hysteresis:

    4.3 mT

  • Input Mode:

    UNIPOLAR

  • Magnetic Field Range-Max:

    30 mT

  • Magnetic Field Range-Min:

    9.5 mT

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    3

  • Operating Current-Max:

    5 mA

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Interface Type:

    3-WIRE INTERFACE

  • Output Type:

    CURRENT OUTPUT

  • Package Equivalence Code:

    TO-236

  • Package Shape/Style:

    RECTANGULAR

  • Packing Method:

    TR

  • Screening Level:

    TS 16949

  • Sensors/Transducers Type:

    MAGNETIC FIELD SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    24 V

  • Supply Voltage-Min:

    3.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    MATTE TIN

  • Termination Type:

    SOLDER

US5881LSE-AAA-000-RE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a dedicated ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for heat dissipation.
  • Use a shielded enclosure, ensure proper grounding, and follow the recommended PCB layout guidelines. Additionally, consider using EMI filters and shielding on I/O lines.
  • Power up the device in the following sequence: VCC, then VDD, and finally the input signals. Power down in the reverse sequence. Ensure a minimum of 10ms delay between power-up and signal application.
  • Handle the device in an ESD-protected environment, use ESD-protective packaging, and store the device in a conductive bag or container.
  • The recommended operating temperature range is -40°C to 125°C. However, the device can operate up to 150°C for short periods. Ensure proper thermal management to prevent overheating.
