Samtec provides a recommended PCB layout and footprint in their application notes and design files, which can be found on their website. It's essential to follow these guidelines to ensure proper mating and reliable connections.
To ensure reliable USB signal integrity, follow the USB 2.0 or USB 3.0 signal integrity guidelines, depending on the application. Samtec also provides guidance on signal integrity in their application notes. Additionally, consider using signal integrity analysis tools to simulate and optimize the design.
The maximum current rating for the USB-A-S-S-B-VU connector is 1.5A per pin, which is in line with the USB 2.0 specification. However, it's essential to check the specific datasheet and application notes for the exact current rating, as it may vary depending on the specific part number and application.
ESD protection is crucial for USB connectors. Samtec recommends using ESD protection devices, such as TVS diodes or ESD arrays, in conjunction with the USB-A-S-S-B-VU connector. Additionally, follow proper PCB design and layout guidelines to minimize ESD susceptibility.
The USB-A-S-S-B-VU connector is rated for operation in temperatures ranging from -40°C to 85°C. However, it's essential to check the specific datasheet and application notes for the exact temperature range, as it may vary depending on the specific part number and application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
USB-A-S-S-B-VU Overview

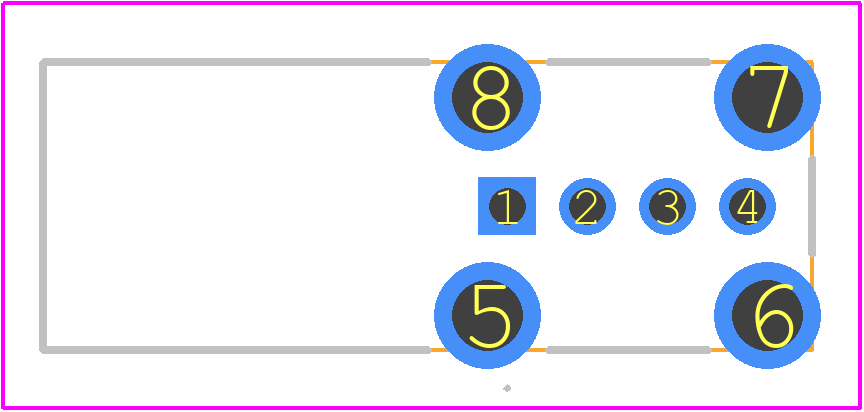

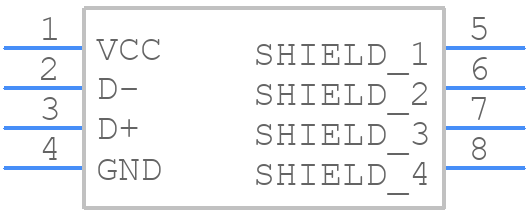

Use the download button to access the USB-A-S-S-B-VU schematic symbol, PCB footprint, and 3D model.
