The recommended mating sequence for the USB-AM-S-F-B-TH connector is to mate the shell first, followed by the signal contacts. This ensures proper alignment and prevents damage to the connector.
To ensure reliable connections, make sure to follow proper termination and soldering techniques, and ensure that the connector is properly seated and mated. Also, use a suitable cable with a compatible gauge and insulation to prevent signal degradation.
The maximum current rating for the USB-AM-S-F-B-TH connector is 1.5A per pin, which is suitable for most USB applications. However, it's essential to check the specific requirements of your application and ensure that the connector can handle the required current.
Yes, the USB-AM-S-F-B-TH connector is designed to support high-speed USB applications up to 480 Mbps. However, it's essential to ensure that the connector is properly terminated and that the cable meets the required specifications for high-speed USB transmission.
To minimize EMI and RFI with the USB-AM-S-F-B-TH connector, use proper shielding and grounding techniques, and ensure that the connector is properly mated and seated. Additionally, consider using EMI-absorbing materials and shielding around the connector to reduce electromagnetic interference.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
USB-AM-S-F-B-TH Overview

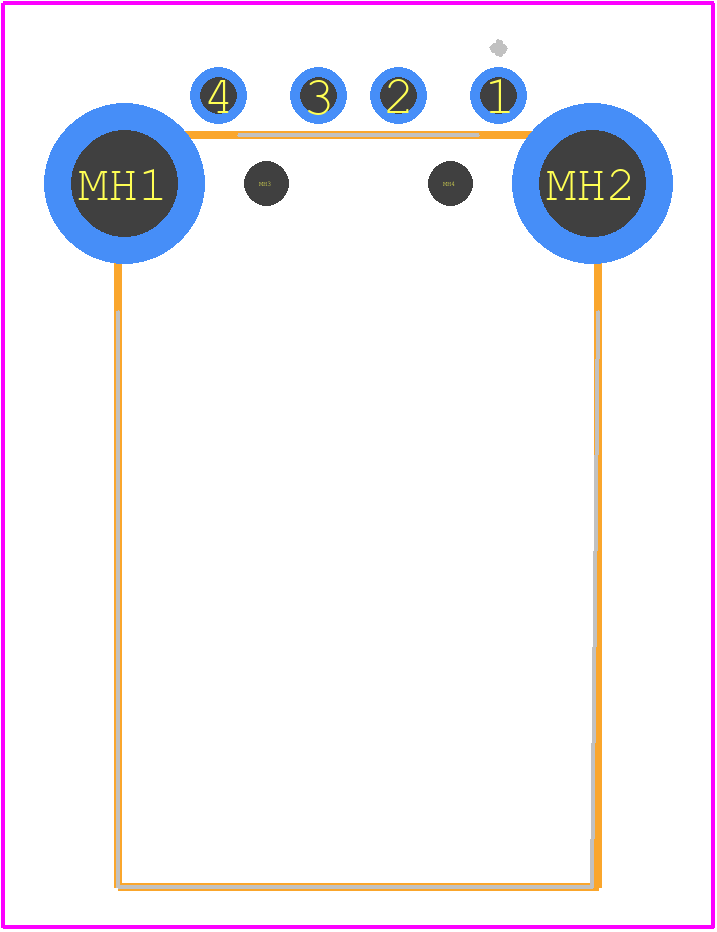

Use the download button to access the USB-AM-S-F-B-TH schematic symbol, PCB footprint, and 3D model.
