USB-AM-S-F-W-TH - SAMTEC

Description: USB Connectors USB 2.0 Interface, Type A

Download USB-AM-S-F-W-TH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

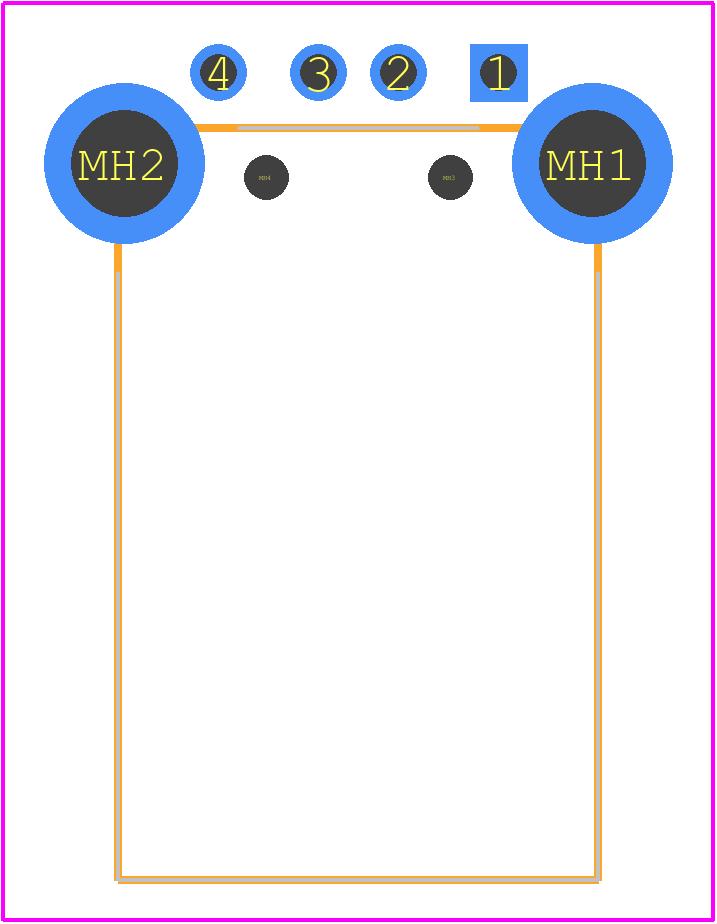

USB-AM-S-F-W-TH - SAMTEC PCB footprint - Other - Other - USB-AM-S-F-W-TH-4
click to zoom
3D Models
USB-AM-S-F-W-TH - SAMTEC  - 3D model - Other - USB-AM-S-F-W-TH-4
click to zoom

USB-AM-S-F-W-TH Details

  • Manufacturer Part Number:

    USB-AM-S-F-W-TH

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    2 Weeks, 5 Days

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    7

  • Additional Feature:

    HOUSING WHITE

  • Board Mounting Option:

    PEG

  • Body/Shell Style:

    PLUG

  • Connector Type:

    USB CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    TIN

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Resistance:

    30 mΩ

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -50 °C

  • Option:

    GENERAL PURPOSE

  • Plating Thickness:

    FLASH inch

  • Shell Finish:

    NICKEL

  • Shell Material:

    COPPER ALLOY

  • Terminal Length:

    0.122 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

  • UL Flammability Code:

    94V-0

USB-AM-S-F-W-TH Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the receptacle first, followed by the plug. This ensures proper alignment and prevents damage to the connector.
  • To ensure reliable connections, make sure to follow proper termination and soldering techniques, and ensure that the connector is properly seated and mated.
  • The maximum current rating for this connector is 1.5A per pin, but it's recommended to derate the current based on the specific application and environmental conditions.
  • Yes, this connector is designed to support high-speed USB applications up to 480Mbps, but it's recommended to follow proper PCB design and layout guidelines to ensure signal integrity.
  • The connector has a metal shield that provides EMI and RFI shielding, but it's recommended to also use proper PCB design and layout techniques, such as grounding and shielding, to ensure effective EMI and RFI shielding.
