USB-C31-D-RA-CS2 - Adam Tech

Description: USB-C (USB TYPE-C), Stacked Receptacle Connector 48 Position Through Hole, Right Angle

Download USB-C31-D-RA-CS2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
USB-C31-D-RA-CS2 - Adam Tech - PCB symbol
click to zoom
PCB Footprints

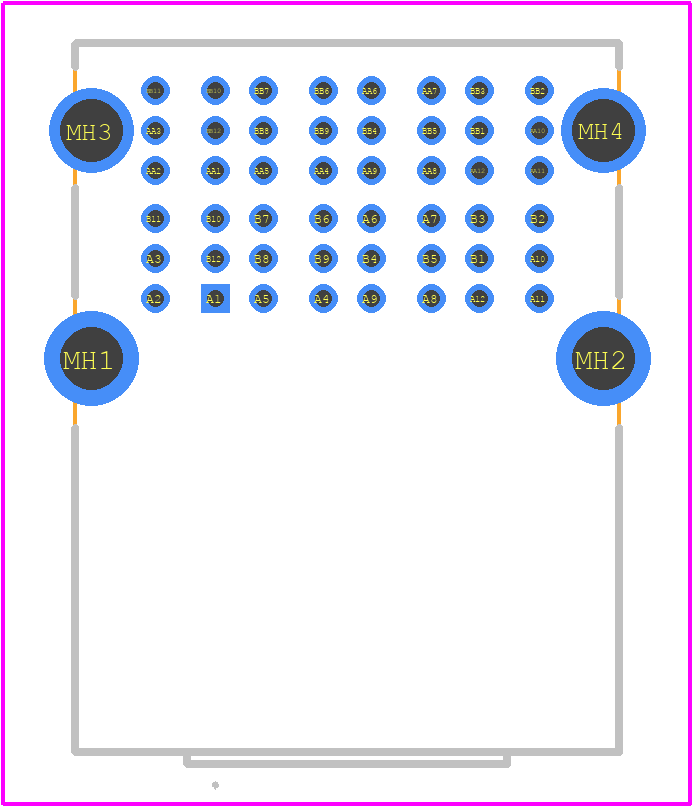

USB-C31-D-RA-CS2 - Adam Tech PCB footprint - Other - Other - USB-C31-D-RA-CS2-11
click to zoom
3D Models
USB-C31-D-RA-CS2 - Adam Tech - 3D model - Other - USB-C31-D-RA-CS2-11
click to zoom

USB-C31-D-RA-CS2 Details

  • Manufacturer Part Number:

    USB-C31-D-RA-CS2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Adam Technologies Inc

  • Connector Type:

    USB CONNECTOR

USB-C31-D-RA-CS2 Frequently Asked Questions (FAQs)

  • The maximum current rating for this USB-C connector is 5A, as per the USB 3.1 specification.
  • Yes, this USB-C connector supports USB Power Delivery (PD) up to 100W, allowing for faster charging and higher power delivery.
  • The operating temperature range for this connector is -40°C to 85°C, making it suitable for various industrial and commercial applications.
  • Yes, this USB-C connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the necessary environmental regulations.
  • The mating cycle rating for this connector is 10,000 cycles, ensuring reliable connections and disconnections over its lifespan.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

USB-C31-D-RA-CS2 Overview

Use the download button to access the USB-C31-D-RA-CS2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like USB-C, or try a keyword search, such as Telecom and Datacom Connectors
