USB1130-15-A - GCT (GLOBAL CONNECTOR TECHNOLOGY)

Description: USB Connectors USB A 2.0 Skt RA High Life 15u" T Hole W/Shell Stake T & R

Download USB1130-15-A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

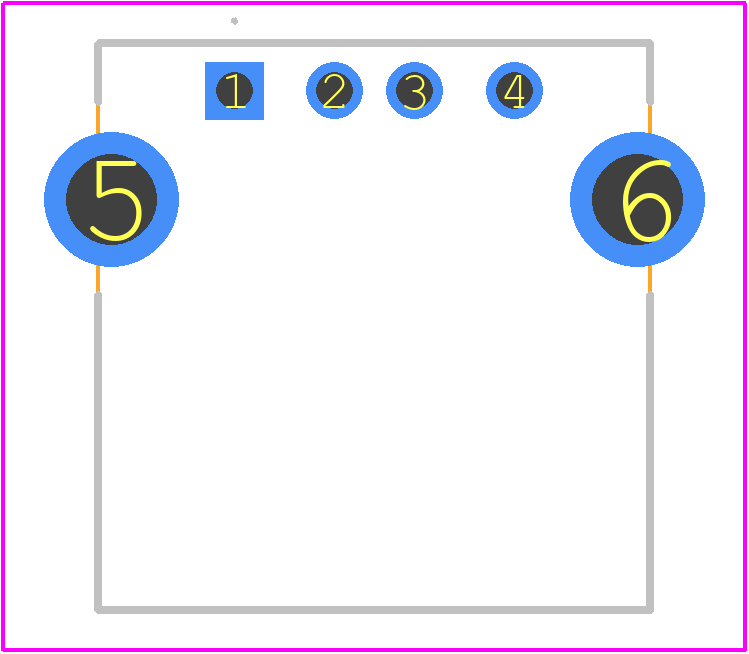

USB1130-15-A - GCT (GLOBAL CONNECTOR TECHNOLOGY) PCB footprint - Other - Other - USB1130-15-A-4
click to zoom
3D Models
USB1130-15-A - GCT (GLOBAL CONNECTOR TECHNOLOGY)  - 3D model - Other - USB1130-15-A-4
click to zoom

USB1130-15-A Details

  • Manufacturer Part Number:

    USB1130-15-A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Global Connector Technology

  • YTEOL:

    0

  • Board Mounting Option:

    MOUNTING FLANGE

  • Body Breadth:

    0.275 inch

  • Body Depth:

    0.557 inch

  • Body Length:

    0.543 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    USB CONNECTOR

  • Contact Gender:

    FEMALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    30 mΩ

  • Contact Style:

    USB 2.0 A

  • Dielectric Withstanding Voltage:

    500VAC V

  • Durability:

    10000 Cycles

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of PCB Rows:

    1

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Packing Method:

    BOX; TR, 13 INCH

  • Plating Thickness:

    15u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    STAINLESS STEEL

  • Terminal Length:

    0.09 inch

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

  • UL Flammability Code:

    94V-0

USB1130-15-A Frequently Asked Questions (FAQs)

  • The recommended PCB layout and footprint can be found in the GCT application notes or by contacting GCT's technical support team. They provide a detailed layout guide to ensure proper mounting and soldering of the connector.
  • Yes, the USB1130-15-A is designed to support high-speed USB 2.0 applications up to 480 Mbps. It meets the USB 2.0 specification for signal integrity and electrical performance.
  • The operating temperature range of the USB1130-15-A is -40°C to +85°C. However, it's recommended to check the datasheet or consult with GCT's technical support for specific temperature ratings and derating information.
  • The USB1130-15-A has a rugged design and is suitable for use in harsh environment applications. It has a high-reliability construction and is resistant to vibration, shock, and corrosion. However, it's recommended to consult with GCT's technical support to ensure the connector meets the specific requirements of the application.
  • The mating cycle life of the USB1130-15-A is 5,000 cycles minimum. This means the connector can withstand at least 5,000 insertions and withdrawals without compromising its electrical performance or mechanical integrity.
