USB2422T/MJ - Microchip

Description: USB Interface IC Low Pin Count 2-Port USB 2.0 Hi-Speed Hub Controller

Download USB2422T/MJ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

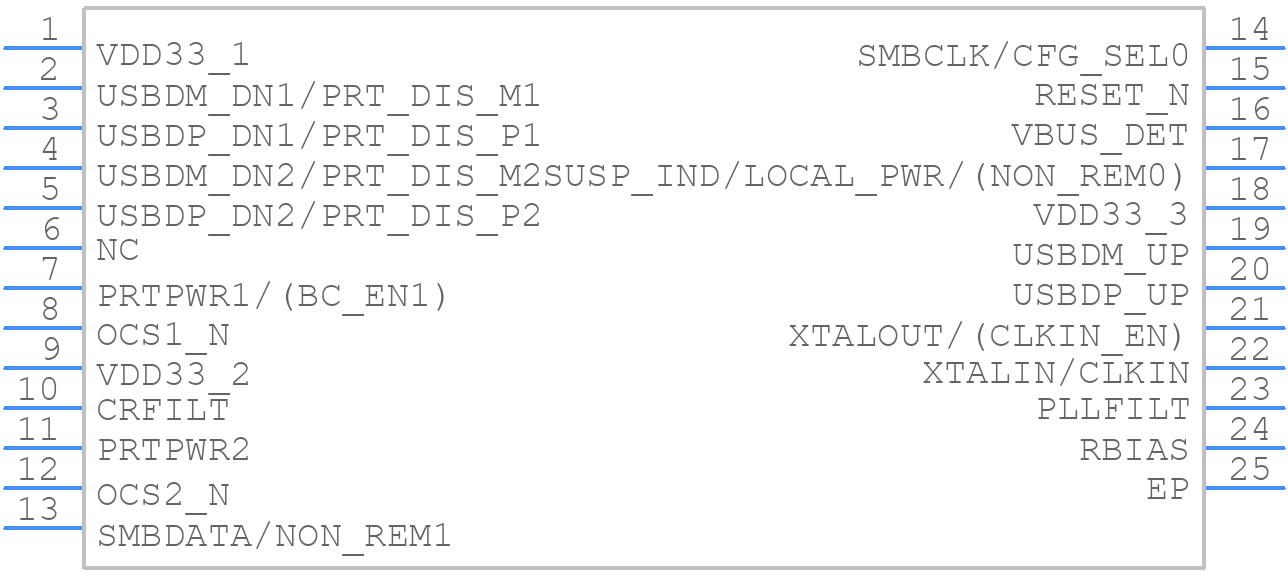

USB2422T/MJ - Microchip - PCB symbol
click to zoom
PCB Footprints
USB2422T/MJ - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - USB2422T/MJ
click to zoom
3D Models
USB2422T/MJ - Microchip - 3D model - Quad Flat No-Lead - USB2422T/MJ
click to zoom

USB2422T/MJ Details

  • Manufacturer Part Number:

    USB2422T/MJ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 4 MM, 0.50 MM PITCH, ROHS COMPLIANT, MO-220, SQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    QFN-24

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    2 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Bus Compatibility:

    SMBUS; USB

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    89 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

USB2422T/MJ Frequently Asked Questions (FAQs)

  • The USB2422T/MJ supports cable lengths up to 3 meters (10 feet) for USB 2.0 and 1.5 meters (5 feet) for USB 3.0, assuming a good quality cable with minimal signal attenuation.
  • The USB2422T/MJ can be configured for self-powered or bus-powered operation by connecting the VBUS pin to the power source (self-powered) or to the USB bus (bus-powered). Additionally, the device can be configured using the CONFIG pin to select between self-powered and bus-powered modes.
  • The USB2422T/MJ can supply up to 500mA of current to downstream devices, making it suitable for powering small to medium-sized peripherals.
  • The USB2422T/MJ has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and a capacitor. This feature helps prevent damage to the device and downstream peripherals in case of an overcurrent condition.
  • Yes, the USB2422T/MJ is a USB 2.0 hub controller, but it can be used in a USB 3.0 application as a USB 2.0 hub within a USB 3.0 system. However, it will only operate at USB 2.0 speeds.
