USB2512B/M2 - Microchip

Description: Low Speed/Full Speed/High Speed USB 2.0 High Speed Hub Controller USB 2.0 3.3V Tray 36-Pin SQFN EP

Download USB2512B/M2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

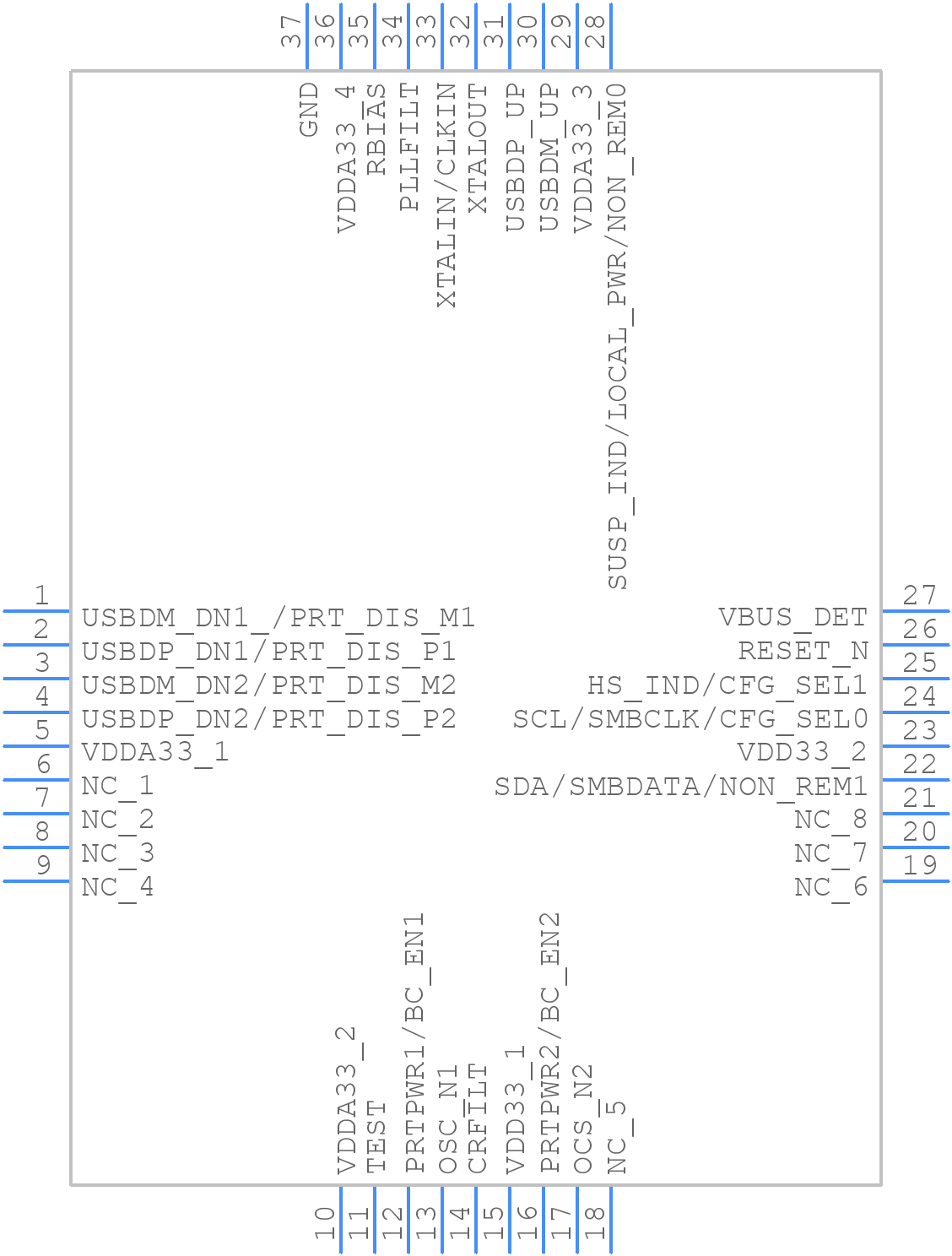

USB2512B/M2 - Microchip - PCB symbol
click to zoom
PCB Footprints
USB2512B/M2 - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - SQFN_32
click to zoom
3D Models
USB2512B/M2 - Microchip - 3D model - Quad Flat No-Lead - SQFN_32
click to zoom

USB2512B/M2 Details

  • Manufacturer Part Number:

    USB2512B/M2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    36

  • Manufacturer Package Code:

    SQFN-36

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Bus Compatibility:

    I2C, SMBUS, USB

  • Clock Frequency-Max:

    24 MHz

  • JESD-30 Code:

    S-XQCC-N36

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC36,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    65 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

USB2512B/M2 Frequently Asked Questions (FAQs)

  • The USB2512B/M2 supports cable lengths up to 3 meters, but this can vary depending on the specific application and cable quality.
  • Yes, the USB2512B/M2 is a USB 2.0 hub controller, but it can be used in a USB 3.0 system as a USB 2.0 hub. However, it will only operate at USB 2.0 speeds.
  • The USB2512B/M2 can be configured for self-powered or bus-powered operation through external resistors and capacitors. Refer to the datasheet and application notes for specific configuration details.
  • The power consumption of the USB2512B/M2 varies depending on the operating mode and configuration. Typically, it consumes around 100-200 mA in normal operation, but this can increase to around 500 mA during high-speed data transfer.
  • The USB2512B/M2 is a commercial-grade device, but it can be used in high-reliability or high-temperature applications with proper design and testing. However, it's essential to consult with Microchip's application engineers and follow their guidelines for such applications.
