USB2514B-AEZG - SMSC

Description: SMSC USB2514B-AEZG, USB Controller, 3-Channel, USB 2.0, 3.3 V, 36-Pin QFN

Download USB2514B-AEZG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

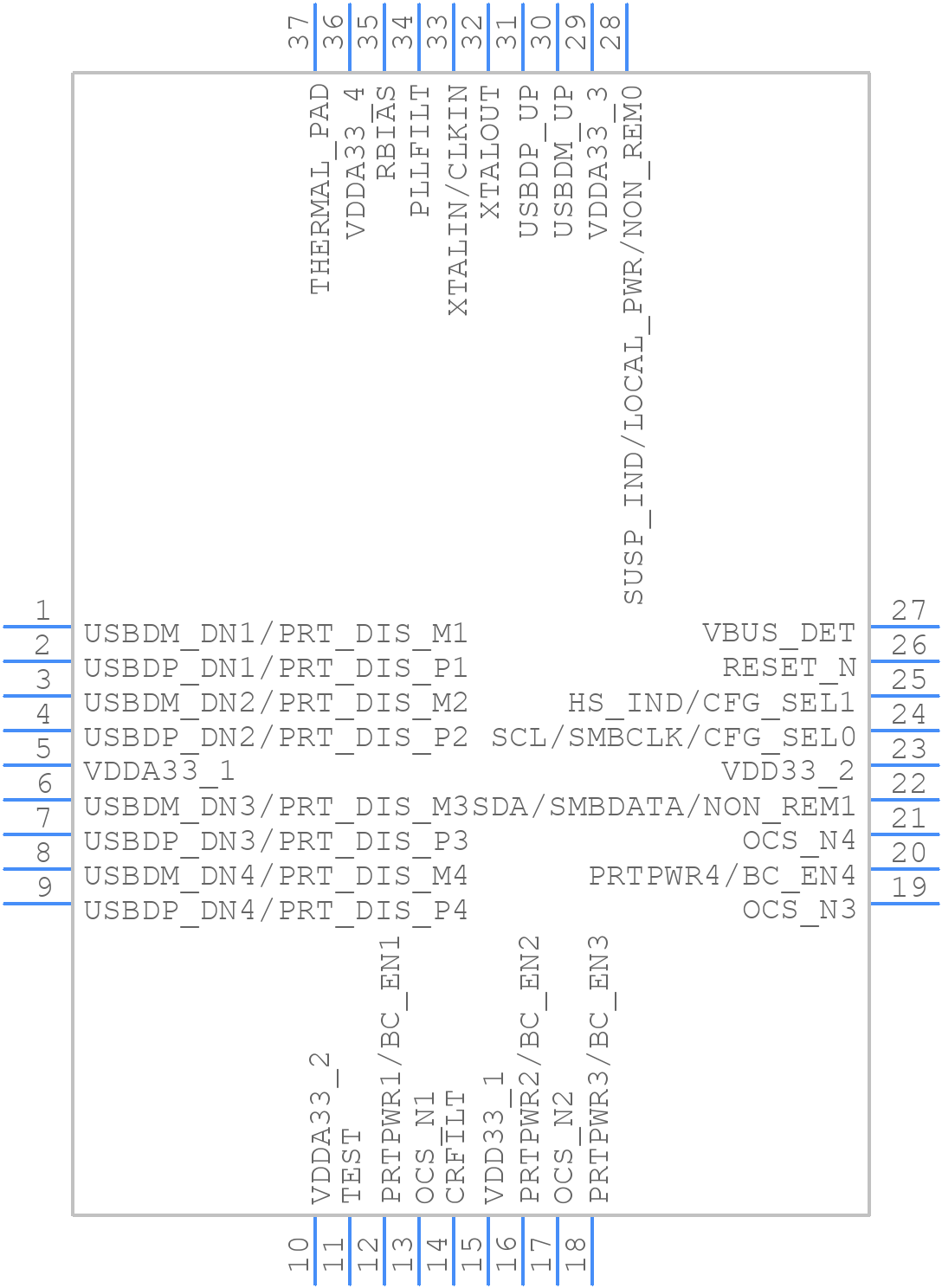

Symbol
USB2514B-AEZG - SMSC - PCB symbol
click to zoom
PCB Footprints
USB2514B-AEZG - SMSC PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - USB2514B-AEZG
click to zoom
3D Models
USB2514B-AEZG - SMSC - 3D model - Quad Flat No-Lead - USB2514B-AEZG
click to zoom

USB2514B-AEZG Details

  • Manufacturer Part Number:

    USB2514B-AEZG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    QFN

  • Package Description:

    6 X 6 MM, 0.50 MM PITCH, ROHS COMPLIANT, QFN-36

  • Pin Count:

    36

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    SMSC

  • Bus Compatibility:

    I2C

  • Clock Frequency-Max:

    24 MHz

  • JESD-30 Code:

    S-XQCC-N36

  • Length:

    6 mm

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

USB2514B-AEZG Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the USB2514B-AEZG is 3 meters, as per the USB 2.0 specification.
  • The USB2514B-AEZG can be configured for high-speed or full-speed operation through the use of external resistors on the DP and DM pins. Refer to the datasheet for specific configuration options.
  • The power consumption of the USB2514B-AEZG is typically around 100mA, but can vary depending on the operating mode and external circuitry.
  • Yes, the USB2514B-AEZG can be used in a USB hub application, but it requires additional external circuitry and configuration to support multiple downstream ports.
  • Overcurrent protection can be implemented using external circuitry, such as a current sense resistor and a voltage comparator, to detect and respond to overcurrent conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

USB2514B-AEZG Overview

Use the download button to access the USB2514B-AEZG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like USB25, or try a keyword search, such as Bus Controllers
