USB2532-1080AEN-TR - Microchip

Description: • Hub Controller IC with 2 downstream ports • USB-IF Battery Charger revision 1.2 support on up & downstream ports (DCP, CDP, SDP) • Battery charging support for Apple devices • FlexConnect: Downstream port 1 able to swap with upstream port, allowing host capable devices to control other devices on the hub • USB to I2C bridge endpoint support • USB Link Power Management (LPM) support • SUSPEND pin for remote wakeup indication to host • Vendor Specific Messaging (VSM) support • Enhanced OEM conf

Download USB2532-1080AEN-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

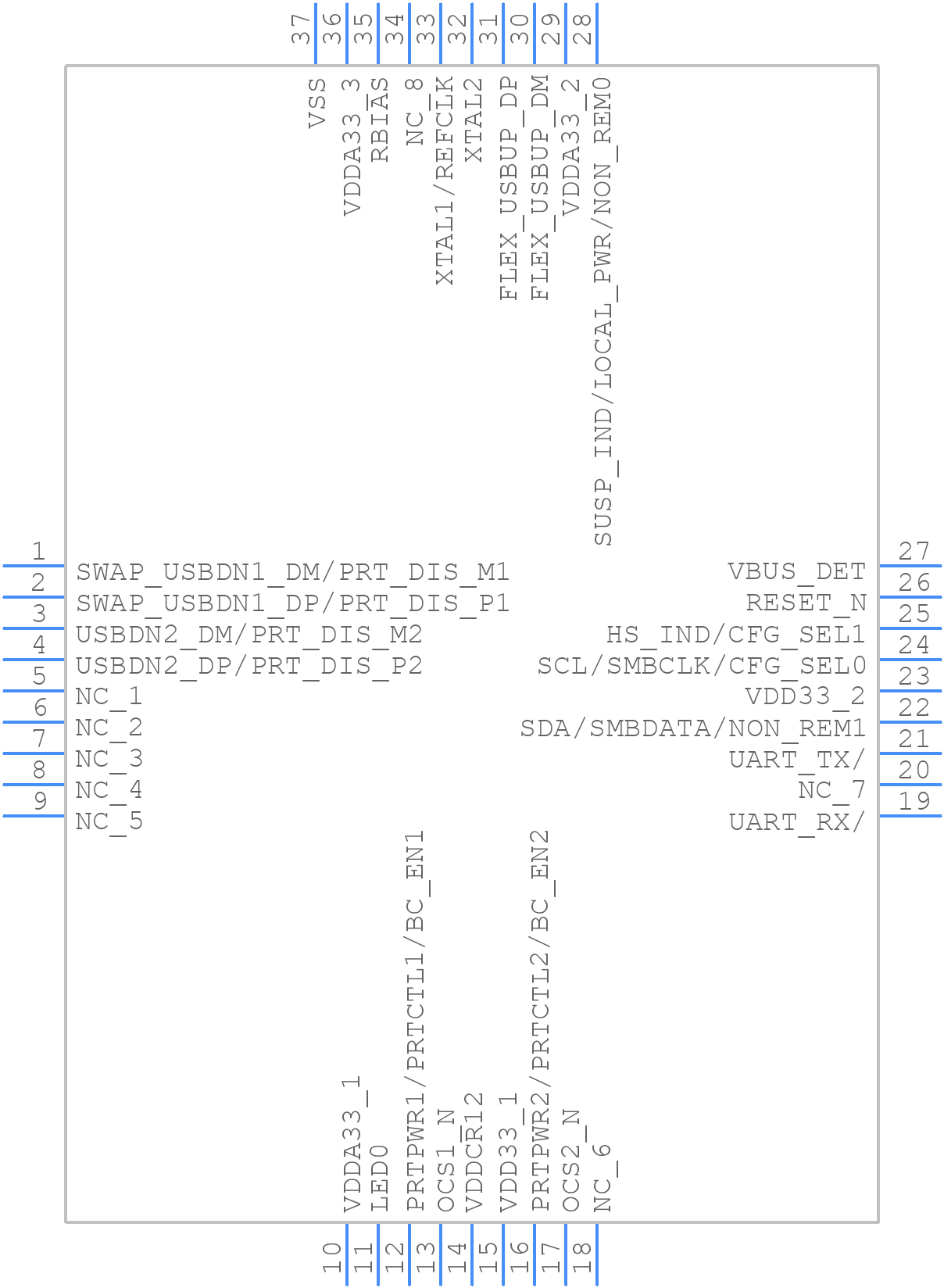

USB2532-1080AEN-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
USB2532-1080AEN-TR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 36-PIN SQFN
click to zoom
3D Models
USB2532-1080AEN-TR - Microchip - 3D model - Quad Flat No-Lead - 36-PIN SQFN
click to zoom

USB2532-1080AEN-TR Details

  • Manufacturer Part Number:

    USB2532-1080AEN-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    36

  • Manufacturer Package Code:

    SQFN-36

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    5 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Additional Feature:

    also available with 3.3v supply

  • Bus Compatibility:

    I2C; SMBUS; UART; USB

  • Clock Frequency-Max:

    24 MHz

  • JESD-30 Code:

    S-PQCC-N36

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC36,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

USB2532-1080AEN-TR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode filter or ferrite bead to reduce EMI.
  • Follow the USB 2.0 specification guidelines for device design, including signal integrity, power management, and electrical requirements. Use the USB-IF certification program to ensure compliance.
  • The device has a thermal pad on the bottom. Ensure good thermal conductivity by using a thermal interface material and a heat sink if necessary. Keep the device away from heat sources and ensure good airflow.
  • Use a 3.3V or 5V power supply, depending on the application. Ensure proper voltage regulation using a low-dropout regulator (LDO) or a switching regulator. Follow the power management guidelines in the datasheet.
  • The device has built-in ESD protection. However, follow proper ESD handling procedures during manufacturing and assembly. Use ESD-protective packaging and handling equipment to prevent damage.
