USB2534-1080AEN-TR - Microchip

Description: USB Interface IC 4-pt USB2.0 Hub Cntlr

Download USB2534-1080AEN-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

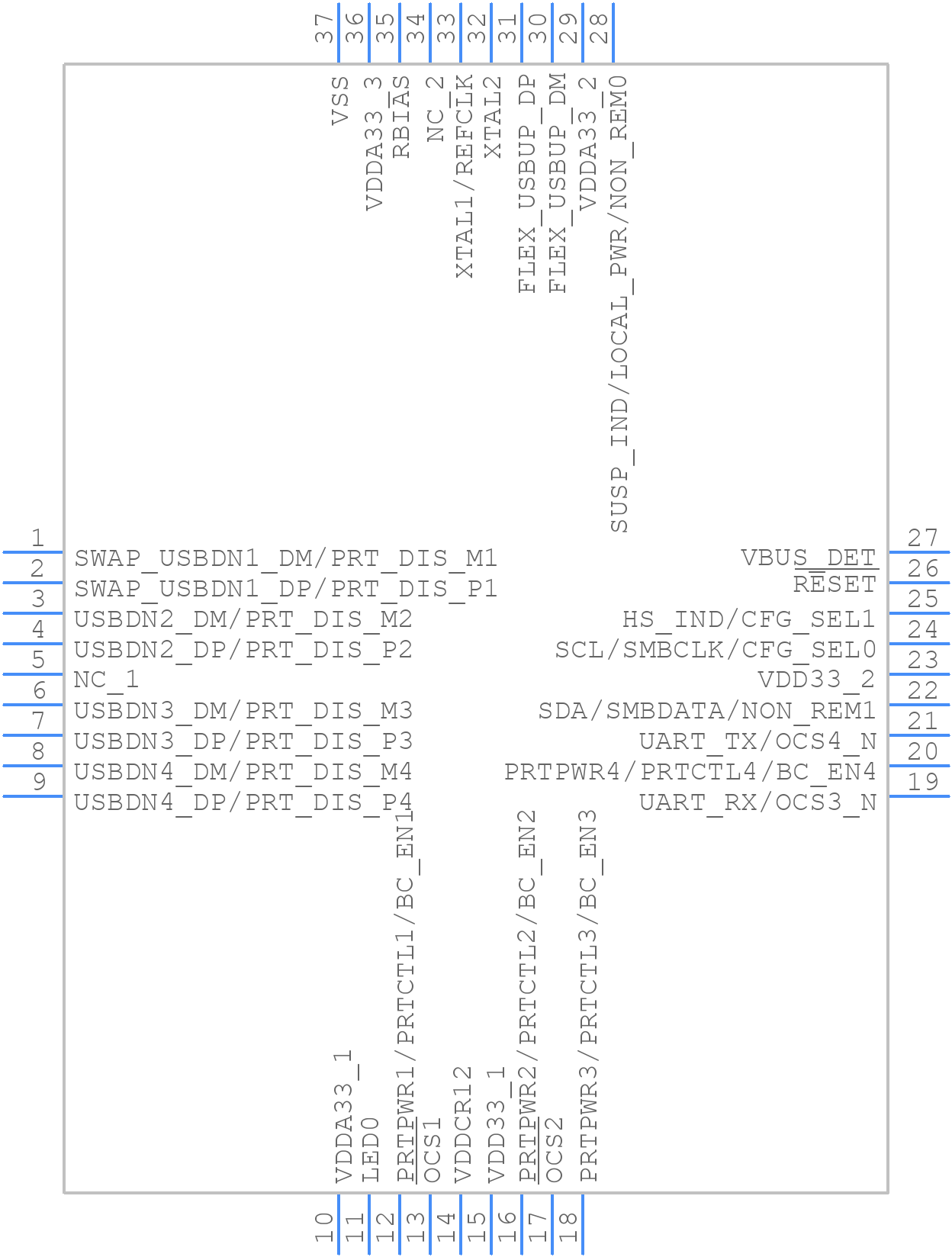

Symbol
USB2534-1080AEN-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
USB2534-1080AEN-TR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 36-PIN SQFN
click to zoom
3D Models
USB2534-1080AEN-TR - Microchip - 3D model - Quad Flat No-Lead - 36-PIN SQFN
click to zoom

USB2534-1080AEN-TR Details

  • Manufacturer Part Number:

    USB2534-1080AEN-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    SQFN-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    SQFN-36

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Bus Compatibility:

    I2C

  • Clock Frequency-Max:

    24 MHz

  • Data Transfer Rate-Max:

    0.0125 MBps

  • JESD-30 Code:

    S-XQCC-N36

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC36,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

USB2534-1080AEN-TR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode filter or ferrite bead to reduce EMI.
  • Use a heat sink or thermal pad to dissipate heat. Ensure good airflow around the device. Consider using a thermal interface material to improve heat transfer. Operate within the recommended temperature range (-40°C to 85°C).
  • Use ESD protection devices such as TVS diodes or ESD arrays on the USB lines. Ensure that the PCB layout provides a clear path for ESD discharge. Use a shielded USB connector and cable to reduce ESD exposure.
  • Use a USB protocol analyzer to capture and analyze USB traffic. Check the device's power management settings. Verify that the device is properly enumerated and configured. Check for conflicts with other USB devices.
  • The device's overcurrent protection is designed to protect against short-circuit conditions. However, it may not protect against all types of overcurrent conditions, such as those caused by faulty devices or cables. Use additional protection mechanisms, such as fuses or PTCs, for added protection.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

USB2534-1080AEN-TR Overview

Use the download button to access the USB2534-1080AEN-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like USB25, or try a keyword search, such as Bus Controllers
