USB2534-1081AEN-TR - Microchip

Description: USB 2.0 HI-SPEED FOUR PORT HUB CONTROLLER

Download USB2534-1081AEN-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

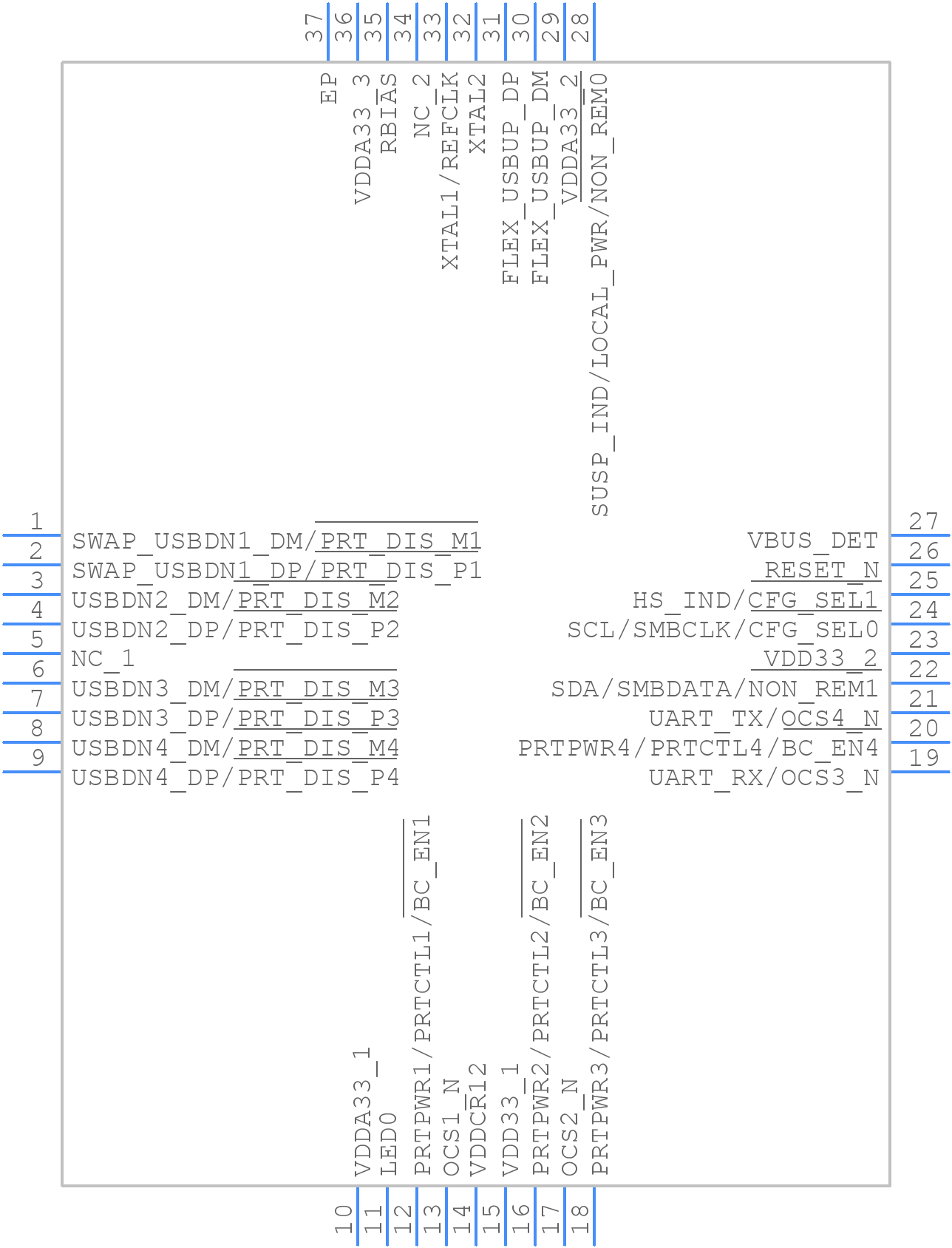

USB2534-1081AEN-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
USB2534-1081AEN-TR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 36-PIN SQFN
click to zoom
3D Models
USB2534-1081AEN-TR - Microchip - 3D model - Quad Flat No-Lead - 36-PIN SQFN
click to zoom

USB2534-1081AEN-TR Details

  • Manufacturer Part Number:

    USB2534-1081AEN-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SQFN-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    SQFN-36

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Bus Compatibility:

    I2C; SMBUS; UART; USB

  • Clock Frequency-Max:

    24 MHz

  • Data Transfer Rate-Max:

    0.0125 MBps

  • JESD-30 Code:

    S-PQCC-N36

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC36,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    175 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

USB2534-1081AEN-TR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode filter or ferrite bead to reduce EMI.
  • Use a thermal pad or thermal interface material to improve heat dissipation. Ensure good airflow and avoid blocking airflow around the device. Follow the recommended operating conditions and derating guidelines.
  • Use a TVS diode or ESD protection device on the USB lines. Ensure that the PCB layout and component placement minimize the risk of ESD damage. Follow proper handling and storage procedures to prevent ESD damage.
  • Use a USB protocol analyzer to capture and analyze the USB traffic. Check the device's power management settings and ensure that the device is properly enumerated. Verify that the device is properly connected and configured.
  • The device can deliver up to 2.5A of current. However, the actual current delivery may be limited by the system's power supply, cable quality, and connector resistance. Ensure that the system's power supply can deliver the required current.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

USB2534-1081AEN-TR Overview

Use the download button to access the USB2534-1081AEN-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like USB25, or try a keyword search, such as Bus Controllers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
