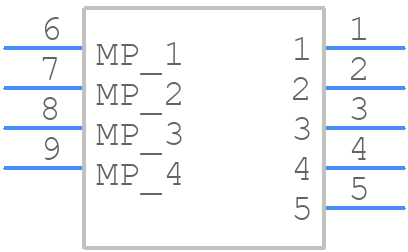

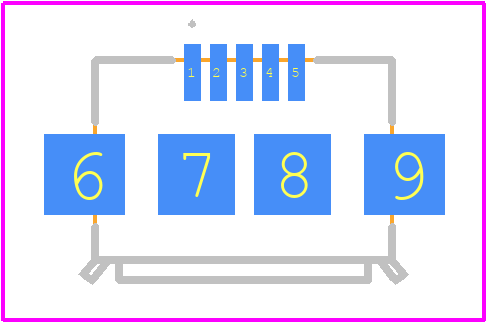

USB3085-30-A - GCT (GLOBAL CONNECTOR TECHNOLOGY)

USB3085-30-A Details

• Manufacturer Part Number:

  USB3085-30-A

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  Global Connector Technology

• Additional Feature:

  RATED CURRENT(POWER): 1.8A

• Body Breadth:

  0.106 inch

• Body Depth:

  0.217 inch

• Body Length:

  0.346 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  USB CONNECTOR

• Contact Finish Mating:

  GOLD (30) OVER NICKEL (50)

• Contact Finish Termination:

  Gold Flash (Au) - with Nickel (Ni) barrier

• Contact Gender:

  FEMALE

• Contact Material:

  COPPER ALLOY

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  30 mΩ

• Contact Style:

  USB 2.0 AB

• Dielectric Withstanding Voltage:

  500VAC V

• Durability:

  10000 Cycles

• Empty Shell:

  NO

• Filter Feature:

  NO

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e4

• Mixed Contacts:

  YES

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  1

• Number of Ports:

  1

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• Packing Method:

  BAG; BOX; TR, 13 INCH

• Plating Thickness:

  30u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  1 A

• Reference Standard:

  UL

• Shell Finish:

  TIN

• Shell Material:

  STAINLESS STEEL

• Terminal Pitch:

  0.65 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  5

• UL Flammability Code:

  94V-0
